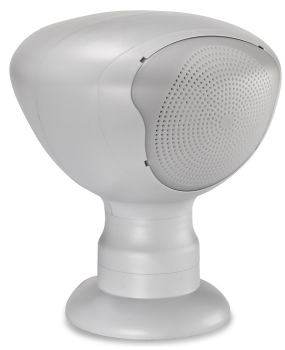

SIR-TOUCH ELECTRONIC SIREN 120dB IP68 24VDC
SKU: 90750
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
General Features:
The new electronic siren, SIR-TOUCH, is an innovative example of design and innovation. Its powerful sound output (120 dB), touch operation, high protection level (IP68-IP69K), and harmonious shape set it apart in the industrial acoustic signalling scene.
Voltages: 115/230V AC - 0.28/0,17A ±10% and 24V DC - 1,65 A.
Mechanical Features:
High impact resistance and a self-extinguishing polycarbonate body and grid make it appropriate for outdoor usage.
The polyurethane gasket ensures a protection rating of IP68–IP69K.
Screw mounting (screws not included).
The M12 4PIN connector is used for the electrical connection.
Acoustic features:
Neodymium magnetic unit 4 Ω.
Multitone: Adjustable volume (6 levels) and 64 selectable tones using an easy and secure TOUCH process.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
General specs:
Continuous operational cycle.
Self-extinguishing: Yes.
IP Grade: 68, 69K.
Electrical security: Class 2.
The minimum temperature is -30.
The maximum temperature is +50°.
Adjustable sound: Yes.
Electrical specs:
Voltage: 24V, 115/230V.
Current: DC and AC.
Frequency: 50/60 Hz.
Continuous operational cycle.
Electrical security: Class 2
Mechanical specs:
Self-extinguishing: Yes.
IP Grade: 68, 69K.
The base colour is grey.
The base material is PC.
Acoustic specs:
There are 64 tones.
Type of tone: multitone.
Adjustable sound: Yes.
Maximum dB: 120.
