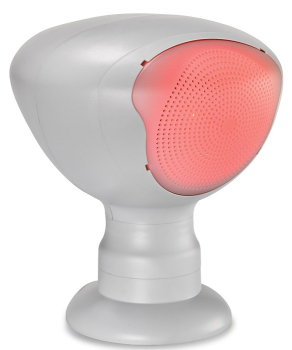

SIR-TOUCH ELECTRONIC SIREN/LED BEACON 85-265VAC
SKU: 90753
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features:
The new electronic siren, SIR-TOUCH, is an innovative example of design and innovation. Its powerful sound output (120 dB), touch operation, high protection level (IP68-IP69K), and harmonious shape set it apart in the industrial acoustic signalling scene.
The SIR-TOUCH LED version is also available with a red front flashing light.
Voltages: 115/230V AC-0.28/0,17A ±10%, 24V DC-1,65 A mechanical characteristics.
High impact resistance and a self-extinguishing polycarbonate body and grid make it appropriate for outdoor usage. The polyurethane gasket ensures a protection rating of IP68–IP69K.
Screw mounting (screws not provided).
Electrical connection via M12 4PIN connector.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
General specs:
Continuous operational cycle.
Self-extinguishing: Yes.
IP Grade: 68, 69K.
Electrical security: Class 2.
The minimum temperature is -30.
The maximum temperature is +50°.
Adjustable sound: Yes.
Electrical specs:
Voltage: 24V, 115/230V.
Current: DC and AC.
Frequency: 50/60Hz.
Continuous operational cycle.
Electrical security: Class 2.
Mechanical specs:
Self-extinguishing: Yes.
IP Class: 68, 69K.
The base colour is grey.
The base material is PC.
Acoustic specs:
There are 64 tones.
Type of tone: multi-tone.
Sound is adjustable.
Maximum dB is 120.
Neodymium magnetic unit with 4 Ω.
Multitone: 64 selectable tones with six-level loudness control using a simple and secure TOUCH process.
Optical specs:
One powerful LED produces the red flashing light on the front of the SIR-TOUCH LED.
