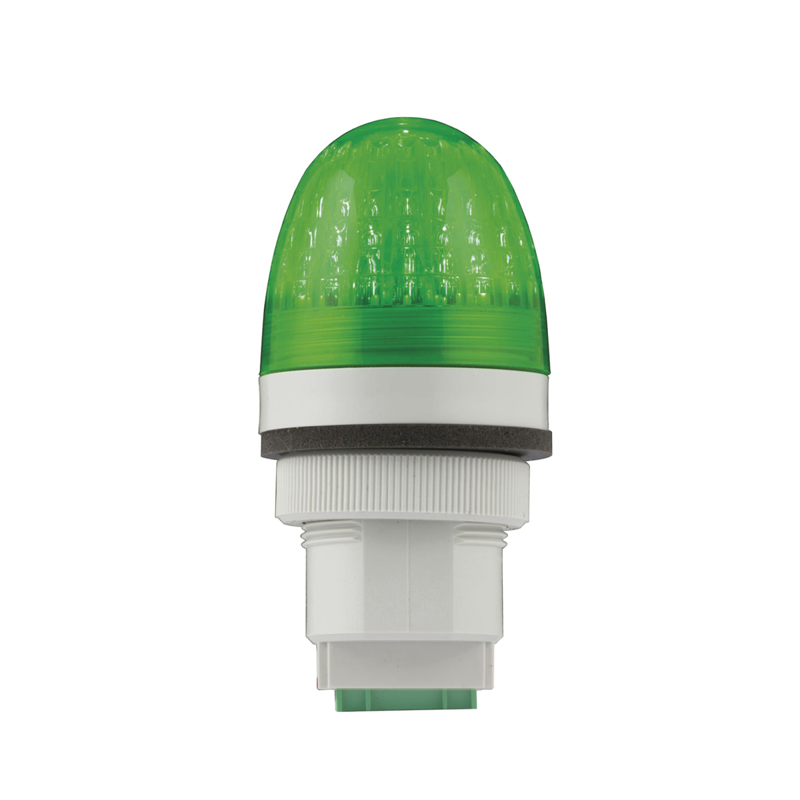

LED GREEN PANEL MOUNT BEACON 48-240VAC
SKU: 91154
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Panel mount 30 mm signalling devices in the P40 series:
Small panel mounting signalling devices of the P40 series were created using multifunctional technology, enabling the selection of multiple alarms selectable via independent electric contacts.
The self-extinguishing PC body is completely shielded from atmospheric elements, vibration, and dust.
Buy currently uses Select Automation shop pricing and checkout.
Important characteristics:
Multi-voltage: 48–240 VAC (or 12–24 VAC/DC).
Three alarm levels (selectable by electrical connections) are available: steady, flashing, and strobe.
4 brilliant LEDs, lenses with 360° light diffusing for maximum frontal performance.
Mounts through a 30 mm hole that is secured in place with a locking ring (internal depth max. 37 mm).
Details:
SERIES: P40 S.
COLOUR OF LENS: Green.
There are three alarm levels: steady, flashing, and strobe.
SUPPLY VOLTAGE: 48–240 VAC/DC.
DESCRIPTION: Panel-mounted LED signalling device.
DIMENSIONS (MM): Ø 41.
Dimensions (MM): 46 EXT.
Index protection IP: IP66.
