P40 PANEL MOUNT SOUNDER 48-240VAC
SKU: 91179
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Panel mount 30 mm signalling devices of the P40 series

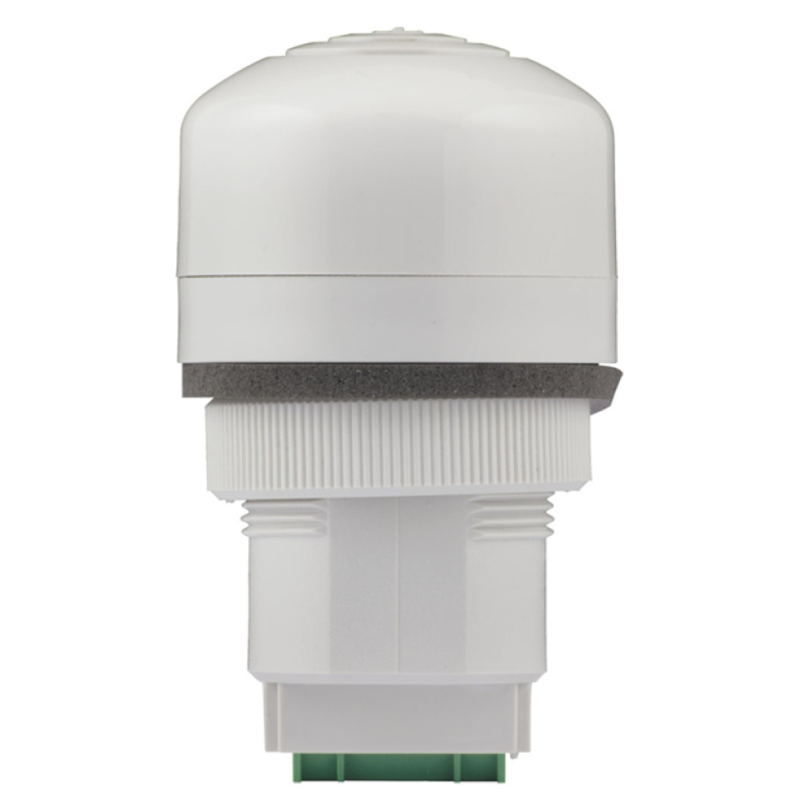

Piezoelectric panel-mount acoustic sounder, P40 A.
Small panel mounting signalling devices of the P40 series were created using multifunctional technology, permitting the selection of multiple alarm levels via independent electric contacts.
The self-extinguishing PC body is completely shielded from atmospheric elements, vibration, and dust.
Buy currently uses Select Automation shop pricing and checkout.
Important characteristics:
Multi-voltage: 48–240 VAC (or 12–24 VAC/DC).
Three alarm levels: amber, green, and red light (selectable via electrical contacts).
It fits through a 30 mm hole and is secured in place with a supplied locking ring (internal depth max. 37 mm).
Details:
P40 A SERIES.
LENS COLOUR: Grey.
DB @ 1M Maximum: 85dB.
SUPPLY VOLTAGE: 48–240 VAC/DC.
DESCRIPTION: Panel-mounted audible sounder.
DIMENSIONS (MM): Ø 41.
Dimensions (MM): 34 ext.
IP65 INDEX PROTECTION.
