LIR 1 5M3 5 V
SKU: 9200080000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
LIR 1,5 M3 V:
PVC-based ring-cable connector with insulation.
Commercially available designs.
unsoldered.
With a conical entrance funnel.
plug for cable, terminal end,1.5 mm³ insulated cable connector with 0.5 mm³ to 1.5 mm² range.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 5.8 mm.
Depth (inches): 0.228 inch.
Width: 20.4 mm.
Width (inches): 0.803 inch.
Net weight: 0.4 g.
Technical data:

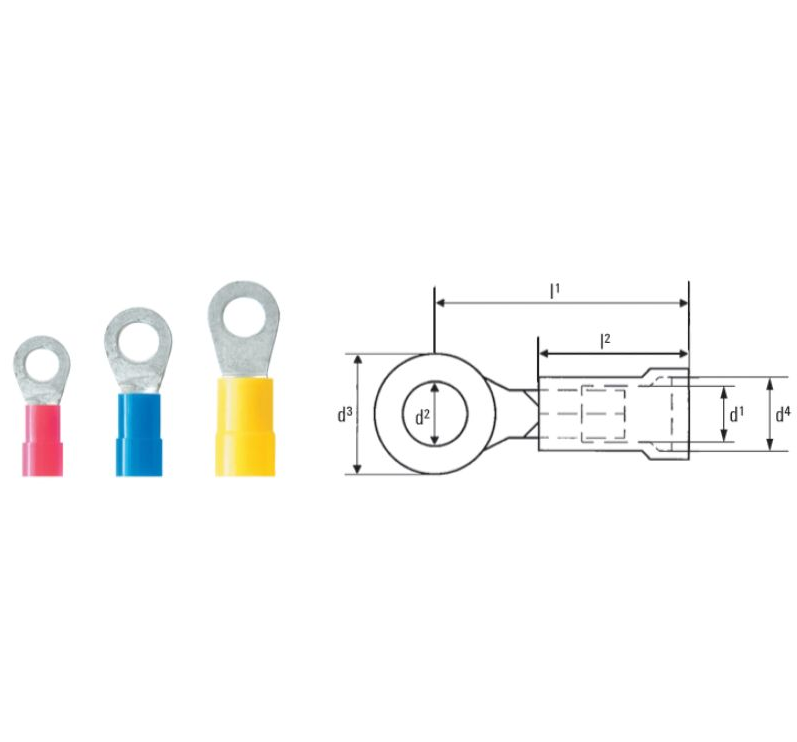

Description of article: Insulated ring-cable connector 1.5 mm² / M3.5.
Connectors:
Conductor cross-section: 1.5 mm².
Conductor cross-section, max.: 1.5 mm².
Conductor cross-section, min.: 0.5 mm².
Connection density (S1): 0.75 mm.
Connection length (I): 16.05 mm.
Dimension: M 3.5.
Dimension (bolt): M 3.5.
Identification colour: red.
Inside diameter (d1): 3.7 mm.
Insulation: Available.
Material/plastic: PVC.
Outside diameter (d): 5.5 mm.
Plastic collar diameter (D): 4 mm.
Plastic collar length (b): 11.3 mm.
