LIR 2 5M3 V
SKU: 9200150000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
LIR 2,5 M3 V:
PVC-based ring-cable connector with insulation.
Commercially available designs.
unsoldered.
With a conical entrance funnel.
plug for cable, terminal end,2.5 mm³ insulated cable connector with 1.5 mm³ to 2.5 mm² range.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 6.2 mm.
Depth (inches): 0.244 inch.
Width: 20.6 mm.
Width (inches): 0.811 inch.
Net weight: 0.72 g.
Technical data:

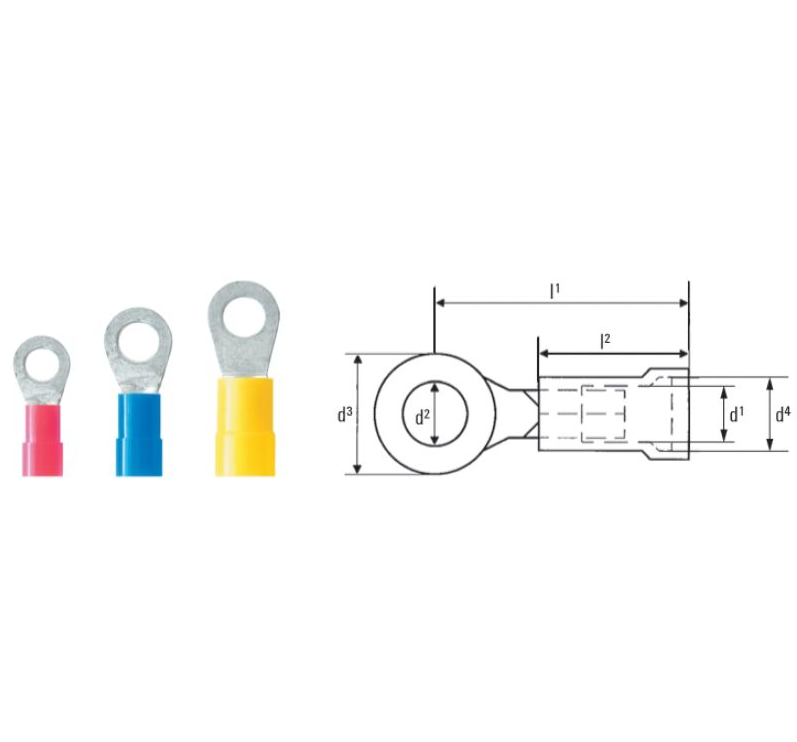

Description of article: Insulated ring-cable connector 2.5 mm² / M3.
Connectors:
Conductor cross-section: 2.5 mm².
Conductor cross-section, max.: 2.5 mm².
Conductor cross-section, min.: 1.5 mm².
Connection density (S1): 0.8 mm.
Dimension: M 3.
Dimension (bolt): M 3.
Identification colour: Blue.
Inside diameter (d1): 3.2 mm.
Insulation: Available.
Material/plastic: PVC.
Outside diameter (d): 6.4 mm.
Plastic collar diameter (D): 4.5 mm.
Plastic collar length (b): 11.3 mm.
