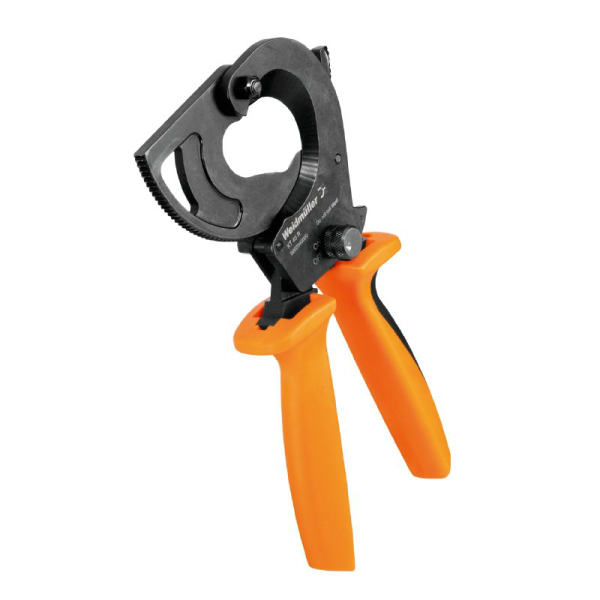

KT 45 R
SKU: 9202040000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Cutting tools in mechanical ratchet configuration.
Designed for non-pinch cutting of copper and aluminium conductors.
Easy to use thanks to optimal leverage and a beautifully constructed cam mechanism.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Weight and Dimensions:
Depth: 40 mm.
Height: 85 mm.
Width: 290 mm.
Net weight: 737.9 g.
Cutting Tools:
Copper sector cable: 3 x 70 SM.
Copper cable - solid, max. (AWG): 600 kcmil.
Copper cable - flexible, max. (AWG): 800 kcmil.
Copper cable - flexible, max. (kcmil): 800 kcmil.
Copper cable - flexible, max.: 400 mm².
Copper cable - stranded, max. (kcmil): 600 kcmil.
Copper cable - stranded, max.: 300 mm².
Copper cable, max. diameter: 45 mm.
Data / telephone / control cable, max.: Ø 45 mm.
Aluminium sector cable: 4 x 70 SE.
Stranded aluminium cable, max. (kcmil): 800 kcmil.
Stranded aluminium cable, max (mm²): 400 mm².
Stranded aluminium cable, max. diameter: 45 mm.
