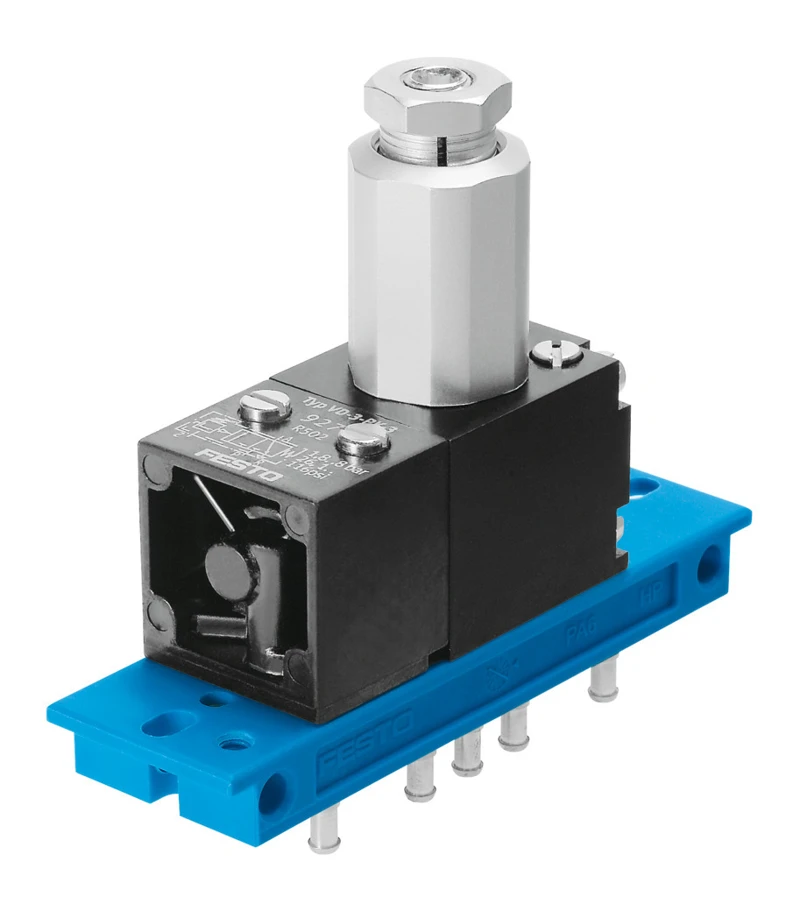

Pressure sequence valve, VD-3-PK-3
SKU: 9270
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure sequence valves VD, for mounting frame 2N
• Standard nominal flow rate (standardised to DIN 1343) 100 l/min
• Pneumatic working port PK-3
• Operating pressure 0.18 MPa ... 0.8 MPa
• Operating pressure 1.8 bar ... 8 bar
• Nominal size 2.5 mm
• Symbol 00991739
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Pressure sequence valves VD, for mounting frame 2N
• Standard nominal flow rate (standardised to DIN 1343) 100 l/min
• Pneumatic working port PK-3
• Operating pressure 0.18 MPa ... 0.8 MPa
• Operating pressure 1.8 bar ... 8 bar
• Nominal size 2.5 mm
• Symbol 00991739
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
