ASK 128.4 2500/5A 5VA CT cl 1
SKU: 94062
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
E is the isolation class.
Operating voltage maximum: 0.72 kV.
Frequency nominal: 50 Hz (others upon request).
Thermal short-time current nominal: Ith = 60 x In.
FS 5, up to 1500 A nominal current, is the over-current limiting factor.
MBS AG current transformers completely adhere to IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:

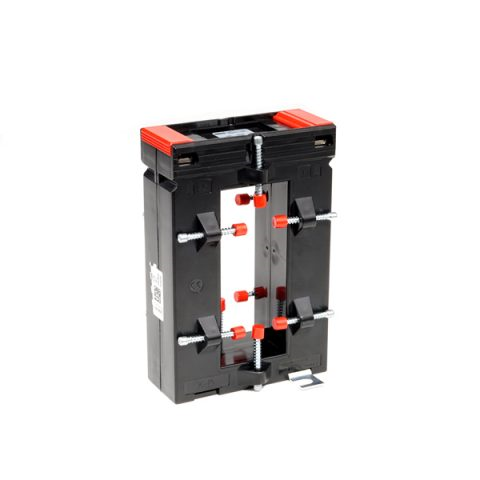

Rectangular shaped current transformers (5A secondary - class 1).
ASK 128.4 current transformers.
MODEL ASK 128.4.
RATIO 2500/5A.
ROUND CONDUCTOR (⌀) 38 mm.
PRIMARY BAR CONDUCTOR 128 x 38 mm.
DESCRIPTION Standard current transformer.
CLASS 1.
VA 30.
DIMENSIONS (MM) (H) 178 x (W) 100 x (D) 40.
