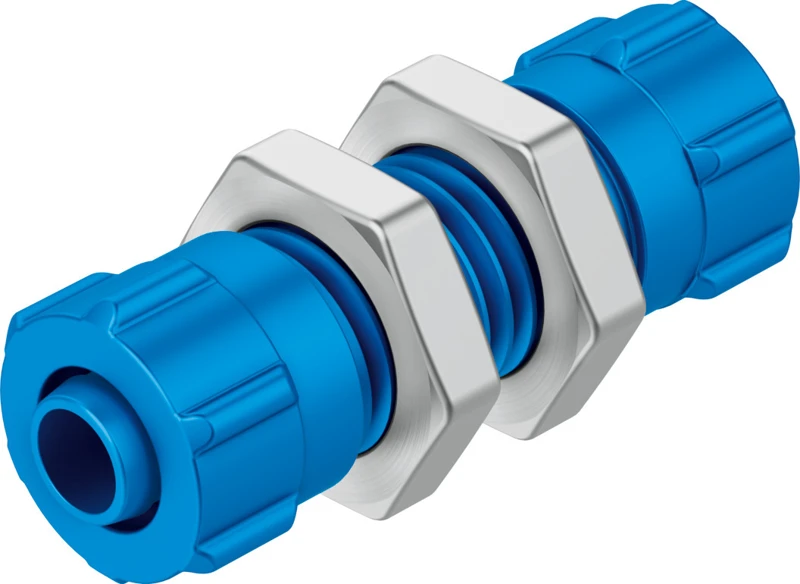

Bulkhead quick connector, SCK-PK-4
SKU: 9421
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Bulkhead quick connectors SCK
• Nominal size 3.4 mm
• Mounting position optional
• Design Bulkhead
• Size of pack 10
• Operating pressure complete temperature range 0 MPa ... 1.6 MPa
• Operating pressure complete temperature range 0 bar ... 16 bar
• Operating pressure complete temperature range 0 psi ... 232 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• Pneumatic connection, port 1 For tubing outside diameter of 6 mm - For barbed fitting I.D. 4 mm with union nut
• Pneumatic connection, port 2 For tubing outside diameter of 6 mm - For barbed fitting inside diameter of 4 mm with nut
• Ambient temperature -40 °C - 150 °C
Buy currently uses Select Automation shop pricing and checkout.
Quick connector CK
• Bulkhead quick connector
• Sealing cap for plastic tube fittings and barbed fittings
• Multiple distributor
• Union nut for CK tube fitting
• Operating media: compressed air, vacuum, (water)
• Aluminium, steel, POM or zinc
• Straight design, L-shaped, T-shaped
