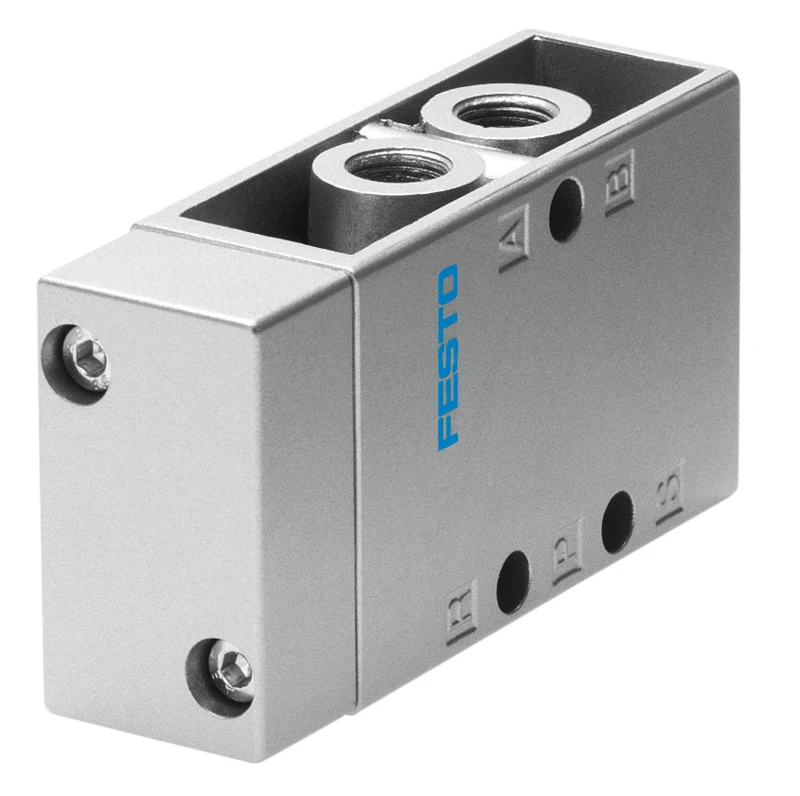

Pneumatic valve, VL-5-1/2

Specifications • Pneumatic valves VL, Tiger Classic • Valve function 5/2-way, monostable • Type of actuation Pneumatic • Construction width 52 mm • Standard nominal flow rate (standardised to DIN 1343) 3700 l/min • Pneumatic working port G1/2 • Operating pressure 0 MPa ... 1 MPa • Operating pressure 0 bar ... 10 bar • Design Poppet seat • Type of reset Mechanical spring • Nominal size 14 mm • Grid dimension 69 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
