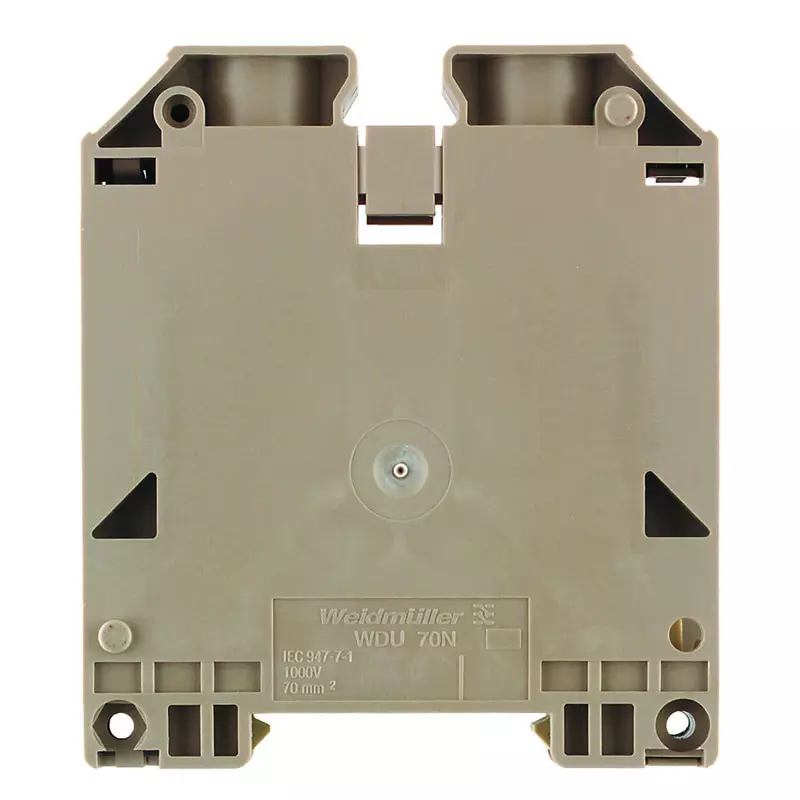

WDU 70N/35
SKU: 9512190000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Feed-through Terminal Block:
In electrical engineering and panel building, the traditional prerequisite is to pass through power, signal, and data.
The distinguishing characteristics include the insulating material, connection system, and terminal block design.
One or more conductors can be joined or connected using a feed-through terminal block.
They may have many connection levels with the same potential or are insulated from each other.
Buy currently uses Select Automation shop pricing and checkout.
Specifications weights and dimensions:
Depth: 85 mm.
Depth (with DIN rail included): 86 mm.
Height: 75 mm.
Width: 20.5 mm.
Net weight: 118.93 g.
Temperatures:
Storage temperature range: -25°C to 55°C.
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
Continuous operating temperature, minimum: -60°C.
Continuous operating temperature, maximum: 130 °C.
Material data:
Material: Wemide.
Colour: Dark beige.
UL 94 flammability rating: V-0.
Rating data IECEx/ATEX:
Certificate No. (ATEX): DEMKO14ATEX1338U.
Certificate No. (IECEX): IECEXULD14.0005U.
Maximum voltage (ATEX): 690 V.
Current (ATEX): 184 A.
Wire cross section max. (ATEX): 70 mm².
Maximum voltage (IECEX): 690 V.
Current (IECEX): 184 A.
Wire cross section max. (IECEX): 70 mm².
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
Marking EN 60079-7: Ex eb II C Gb.
Ex 2014/34/EU label: II 2 G D.
system requirements:
Version: Screw connection for screwable cross-connection in closed state.
End cover plate required: No.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level 2.
Number of potentials per Tier: 1.
Cross-connected levels internally: No.
PE connection: No.
Rail: TS 35.
N-function: No.
PE function: No.
PEN function: Yes.
2 clampable conductors (H05V/H07V) with equal cross-section (rated connection):
Cross-section for connected wire, stranded, two clampable wires, maximum: 25 mm².
Cross-section for connected wire, stranded, two clampable wires, minimum: 10 mm².
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, maximum: 25 mm².
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, minimum: 6 mm².
Wire connection cross section, finely stranded, two clampable wires, minimum: 10 mm².
Wire cross-section, finely stranded, two clampable wires, maximum: 25 mm².
Additional technical details:
Version that has been tested for explosions: Yes.
Installation advice: Mount directly.
Number of comparable terminals: 1.
Open sides: Closed.
Mounting type: snap-on.
CSA Rating Data:
Certificate number (CSA): 200039-1581431.
Current size C (CSA): 150 A.
Voltage size C (CSA): 600 V.
Wire cross section maximum (CSA): 0 AWG.
Wire cross section minimum (CSA): 6 AWG.
Conductors for clamping (extra connection):
Connection type, additional connection: Screw connection.
Conductors for clamping (rated connection):
Size of blade: S6 (DIN 6911).
Maximum clamping range: 95 mm².
Minimum clamping range: 16 mm².
Clamping screw: M 8.
Maximum cross-sectional area, stranded connection: 95 mm².
Minimum cross-sectional area, stranded: 16 mm².
Connection direction: on side.
Gauge to IEC 60947-1: B11.
Number of connections: 2.
Length of strip: 22 mm.
Tightening torque, maximum: 12 Nm.
Tightening torque, minimum: 8 Nm.
Connection type: Screw connection.
Wire connection cross section AWG, maximum: AWG 0.
Wire connection cross section AWG, minimum: AWG 6.
Cross section of wire connection, neatly stranded, maximum: 70 mm².
cross-section of wire connection, finely stranded, minimum: 16 mm².
Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/1, maximum: 70 mm².
Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/1, minimum: 16 mm².
Wire connection cross-section, carefully stranded with wire-end ferrules DIN 46228/4, maximum: 50 mm².
Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/4, minimum: 16 mm².
Wire connection cross-section, solid core, maximum: 16 mm².
Wire connection cross-section, solid core, minimum: 16 mm².
General:
Installation advice: Mount directly.
Rail: TS 35.
Standard: IEC 60947-7-1.
Wire connection cross section AWG; maximum: AWG 0.
Wire connection cross section AWG, minimum: AWG 6.
Ratings data:
Cross-section rating: 70 mm².
Voltage rating: 1000 V.
DC voltage rating: 1000 V.
Current rating: 192 A.
Current at maximum wires: 232 amps.
Standard: IEC 60947-7-1.
According to IEC 60947-7-x, volume resistance is 0.17 mΩ.
Rated impulse withstand voltage: 8 kV.
Power loss in accordance with IEC 60947-7-x is 6.14 W.
Severity of pollution: 3.
UL rating data:
Certificate No. (cURus): E60693.
Factory wiring maximum conductor size (cURus): 0 AWG.
Size of conductor Factory wiring minimum (cURus): 6 AWG.
Conductor size Field wiring maximum (cURus): 0 AWG.
Conductor size Field wiring minimum (cURus): 6 AWG.
Current C (cURus) size: 150 A.
Voltage size C (cURus): 600 V.
