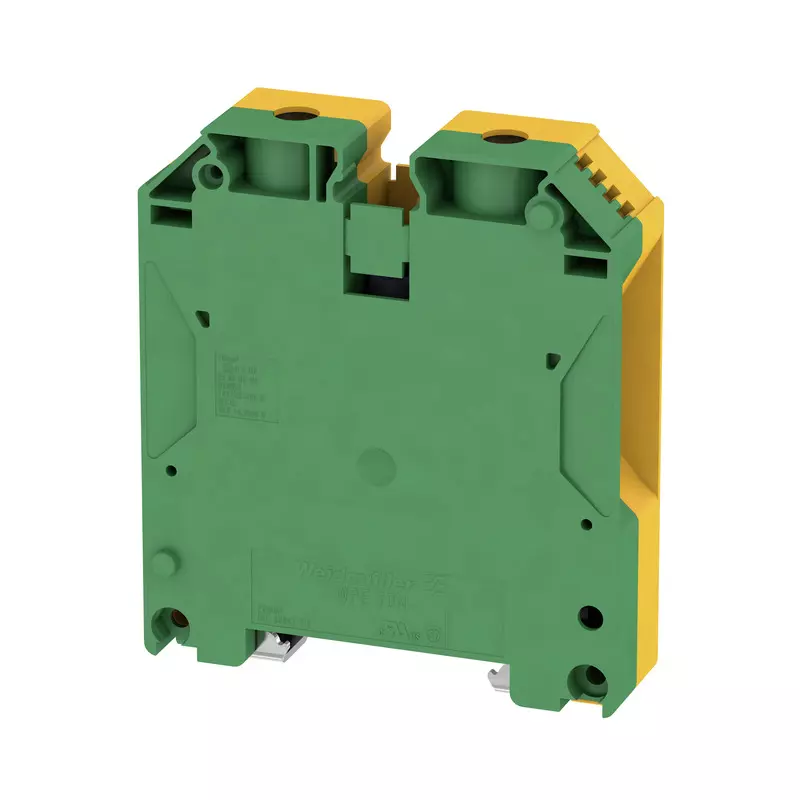

WPE 70N/35

Specifications weights and dimensions: Depth: 85 mm. Depth (with DIN rail included): 86 mm. Height: 75 mm. Width: 20.5 mm. Net weight: 188.79 g. Temperatures: Storage temperature range: -25°C to 55°C. Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity. Continuous operating temperature, minimum: -60°C. Continuous operating temperature, maximum: 130 °C. Material data: Material: Wemide. Colour: Green and yellow. UL 94 flammability rating: V-0. Rating data IECEx/ATEX: Certificate No. (ATEX): DEMKO14ATEX1338U. Certificate No. (IECEX): IECEXULD14.0005U. Wire cross section max. (ATEX): 70 mm². Wire cross section max. (IECEX): 70 mm². Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity. Marking EN 60079-7: Ex eb II C Gb. Ex 2014/34/EU label: II 2 G D. system requirements: Version: Screw connection with PE connection, in closed state. End cover plate required: No. Number of potentials: 1. Number of levels: 1. Number of clamping points per level 2. Number of potentials per Tier: 1. Cross-connected levels internally: No. PE connection: Yes. Rail: TS 35. N-function: No. PE function: Yes. PEN function: Yes. Additional technical details: Version that has been tested for explosions: Yes. Installation advice: When screwed in. Interlock: for screw fixing. Number of comparable terminals: 1. Open sides: Closed. Mounting type: When screwed in. Conductors for clamping (extra connection): Connection type, additional connection: Screw connection. Conductors for clamping (rated connection): Size of blade: S6 (DIN 6911). Maximum clamping range: 95 mm². Minimum clamping range: 16 mm². Clamping screw: M 8. Maximum cross-sectional area, stranded connection: 95 mm². Minimum cross-sectional area, stranded: 16 mm². Connection direction: on side. Gauge to IEC 60947-1: B11. Number of connections: 2. Length of strip: 22 mm. Tightening torque, maximum: 12  Nm. Tightening torque, minimum: 8  Nm. Connection type: Screw connection. Wire connection cross section AWG, maximum: AWG 0. Wire connection cross section AWG, minimum: AWG 6. Cross section of wire connection, neatly stranded, maximum: 70 mm². cross-section of wire connection, finely stranded, minimum: 16 mm². Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/1, maximum: 70 mm². Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/1, minimum: 16 mm². Wire connection cross-section, carefully stranded with wire-end ferrules DIN 46228/4, maximum: 50 mm². Wire connection cross-section, neatly stranded with wire-end ferrules DIN 46228/4, minimum: 16 mm². Wire connection cross-section, solid core, maximum: 16 mm². Wire connection cross-section, solid core, minimum: 16 mm². CSA Rating Data: Certificate number (CSA): 200039-1581431. Wire cross section maximum (CSA): 0 AWG. Wire cross section minimum (CSA): 6 AWG. General: Installation advice: When screwed in. Rail: TS 35. Standard: IEC 60947-7-2. Wire connection cross section AWG; maximum: AWG 0. Wire connection cross section AWG, minimum: AWG 6. PE rating data: Rated short-time current: 8400 A (70 mm²). Centre screw on PE terminals: M 5. Tightening torque range for fixing screw: 2.0...4.0 Nm. PEN function: Yes. Ratings data: Cross-section rating: 70 mm². Adjoining terminal voltage rating: 1000 V. DC voltage rating: 1000 V. Standard: IEC 60947-7-2. According to IEC 60947-7-x, volume resistance is 0.17 mΩ. Rated impulse withstand voltage: 8 kV. Power loss in accordance with IEC 60947-7-x is 6.14 W. Severity of pollution: 3. UL rating data: Certificate No. (cURus): E60693. Factory wiring maximum conductor size (cURus): 0 AWG. Size of conductor Factory wiring minimum (cURus): 6 AWG. Conductor size Field wiring maximum (cURus): 0 AWG. Conductor size Field wiring minimum (cURus): 6 AWG.
