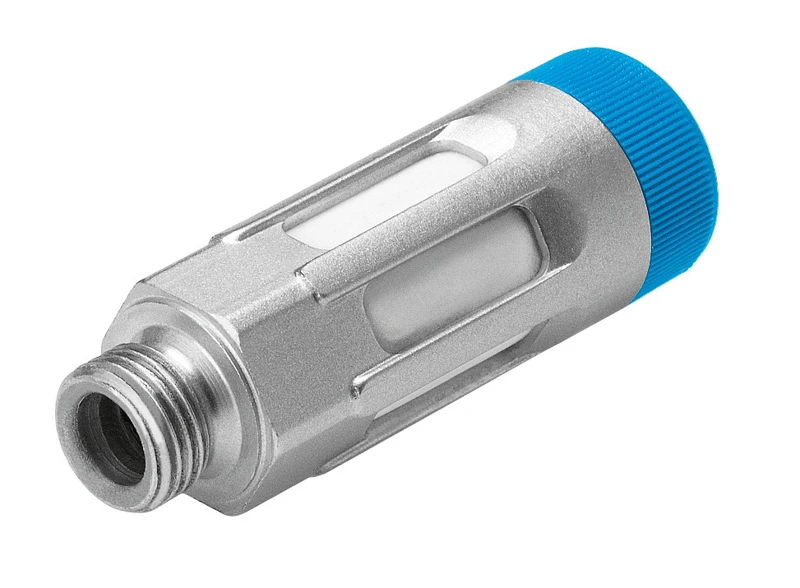

Flow control/silencer, GRU-1/4-B

Specifications • Flow control/silencer GRU • Valve function Sound pressure control function • Selection of additional functions With silencer • Pneumatic connection, port 1 G1/4 • Adjustment component Slotted head screw • Type of mounting Screw-in • Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi) 0 l/min ... 1500 l/min • Ambient temperature -10 °C ... 70 °C • Material housing Aluminium • Mounting position optional • Symbol 00991451 • Operating pressure complete temperature range 0 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
