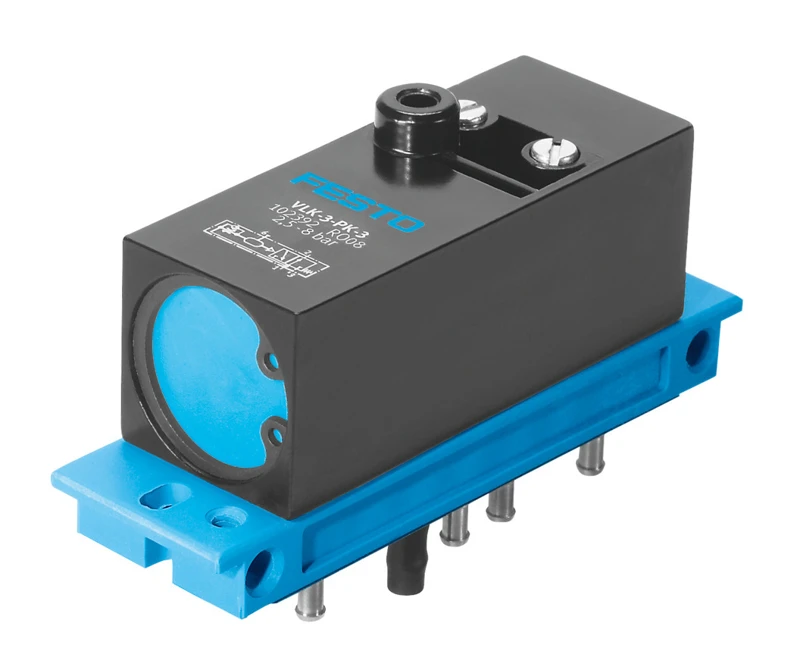

Short pulse valve, VLK-3-PK-3

Specifications • Time delay valve, M5 compact system, Short pulse valve • Nominal size 2.5 mm • Symbol 00992823 • Operating pressure 2.5 bar ... 8 bar • Standard nominal flow rate (standardised to DIN 1343) 90 l/min • Explosion protection The information in the certificate must be observed! Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Product weight 170 g • Type of mounting On mounting frame • Material seals TPE-U(PU) • Material housing Die-cast zinc
