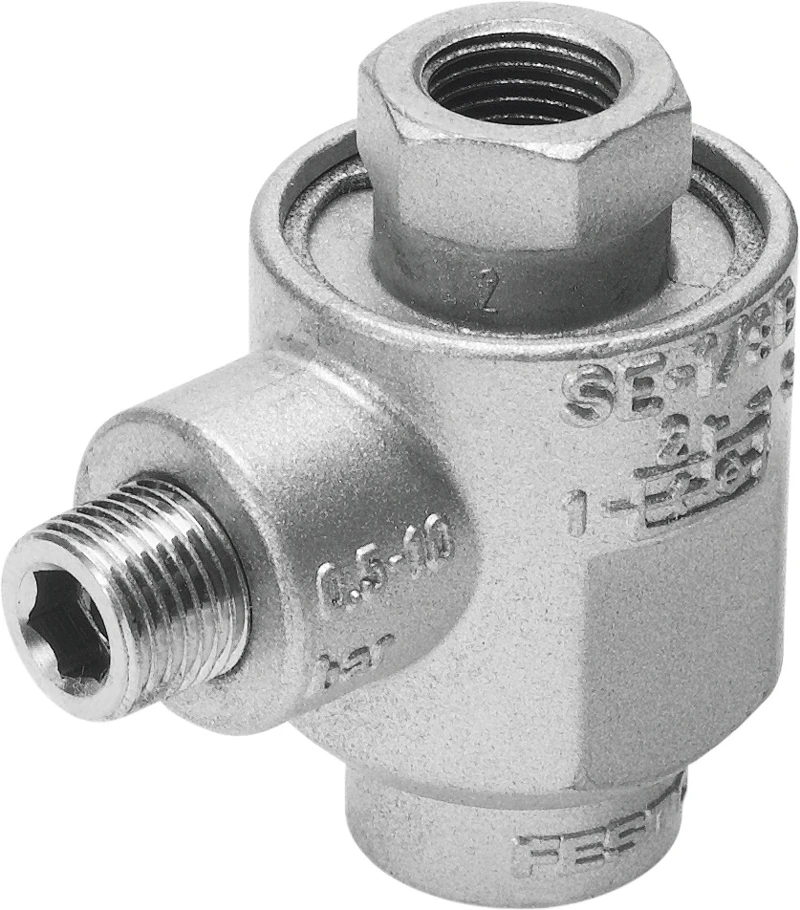

Quick exhaust valve, SE-1/2-B

Specifications • Quick exhaust valves SE • Valve function Quick exhaust • Pneumatic connection, port 1 G1/2 • Pneumatic connection, port 2 G1/2 • Type of mounting Screw-in • Standard nominal flow rate, exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi) 6480 l/min • Standard nominal flow rate, air flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi) 4560 l/min • Operating pressure 0.3 bar ... 10 bar • Ambient temperature -20 °C ... 75 °C • Material housing Die-cast aluminium • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
