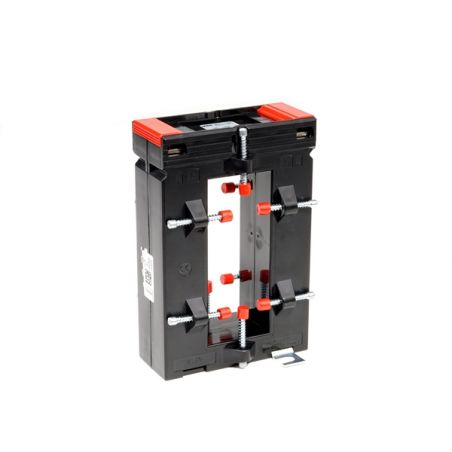

ASK 103.41 500/5A 5VA CT cl 1
SKU: 97054
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Category of isolation: E.
The highest voltage that can be used is 0.72 kV.
50Hz as the nominal frequency (others upon request).
For thermal short-time current, the nominal value is Ith = 60 x In.
Up to 1500 A nominal current, the over-current limiting factor (FS 5) is in place.
The MBS AG current transformers completely comply with the following standards: VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Rectangular shaped current transformers (5A secondary - class 1).
ASK 103.41 current transformers.
MODEL ASK 103.41.
RATIO 500/5A.
ROUND CONDUCTOR (⌀) 40 mm.
PRIMARY BAR CONDUCTOR 103 x 41 mm.
DESCRIPTION Rectangular shaped current transformer.
CLASS 1.
VA 5.
DIMENSIONS (MM) (H) 150 x (W) 99 x (D) 40.
