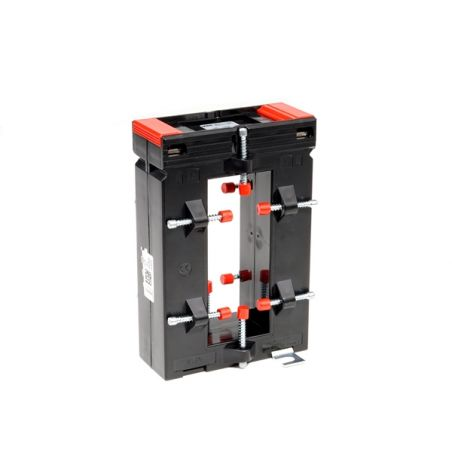

ASK 103.41 800/5A 5VA CT cl 1
SKU: 97060
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Class of isolation: E.
Up to 0.72 kV is the maximum operating voltage.
50 Hz is the nominal frequency (others upon request).
Ith = 60 x In is the nominal thermal short-time current.
FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Rectangular shaped current transformers (5A secondary - class 1).
ASK 103.41 current transformers.
MODEL ASK 103.41.
RATIO 800/5A.
ROUND CONDUCTOR (⌀) 40 mm.
PRIMARY BAR CONDUCTOR 103 x 41 mm.
DESCRIPTION Rectangular shaped current transformer.
CLASS 1.
VA 10.
DIMENSIONS (MM) (H) 150 x (W) 99 x (D) 40.
