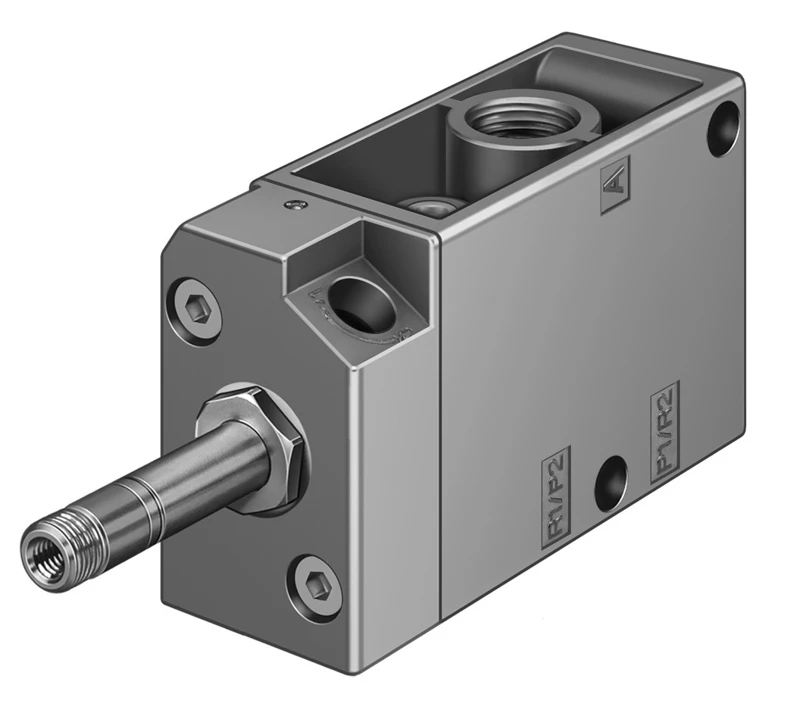

Solenoid valve, MFH3-1/4

Specifications • Solenoid valves MFH, Tiger Classic • Valve function 3/2-way, closed, monostable • Type of actuation Electric • Construction width 30.5 mm • Standard nominal flow rate (standardised to DIN 1343) 800 l/min • Pneumatic working port G1/4 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0.15 MPa ... 0.8 MPa • Operating pressure 1.5 bar ... 8 bar • Design Poppet seat • Type of reset Mechanical spring • Approval c UL us - Recognized (OL) • Degree of protection IP65 • Nominal size 7 mm • Grid dimension 32 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
