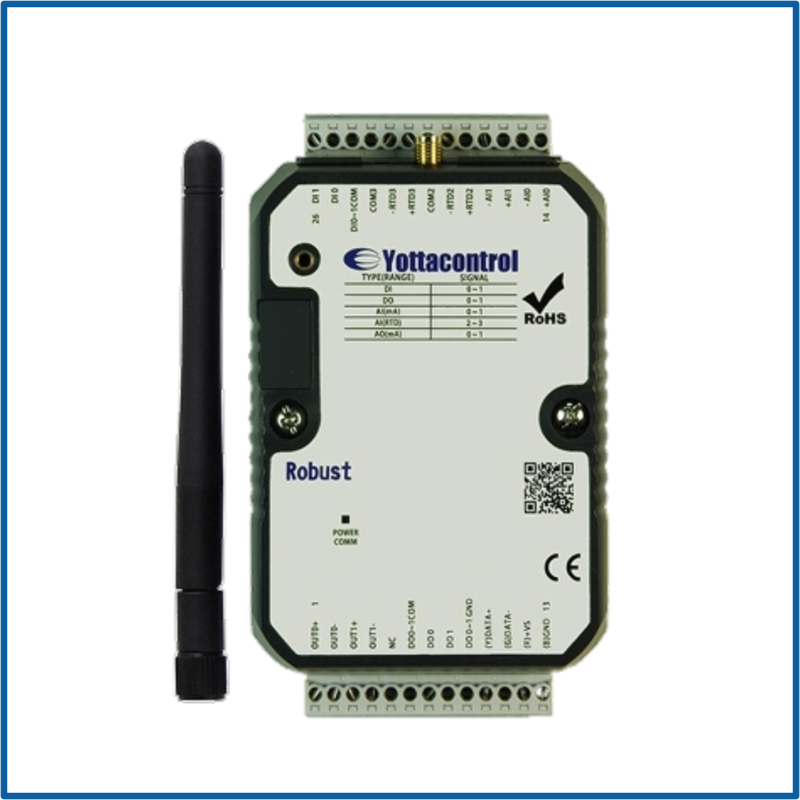

Remote Module (RS-485) 8AI 2AO 4DO (0-10V)
SKU: A-1010+
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-10x RS-485 I/O module, support protocol:
Modbus RTU/ACII
LED - DC Power, Remote Modules ADIO
8AI (0~10V) - 10bits, 2AO (0~10V), 4DO (Sink Output)
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC/24VAC
Outputs: 4*(Sink Transistor)
Continuous Current: 10-40VDC(200mA)
Communication Baud Rate: 2400~115200bps
Isolation: YES(5000VDC)
Output Operating Frequency: 10HZ
Operation Temperature: -20 to +75 °C
Degree Of Protection: IP20
Analog inputs: 8 (10-bit)
Analog input Type: 0~10V
Analog Outputs: 2 (10-bit)
Analog Outputs Type: 0~10V
Input Impedance: Voltage:10 MΩ
Analog Input/Output Accuracy: ±3%/±3%
Interface: RS-485
Channel Independent Configuration: YES
Sampling Rate: 10 sample/second (total)
CMR @ 50/60 Hz: 120 dB
Span Drift: ±50 ppm/°C
Zero Drift: ±18 μV/°C
Isolated RS-485 interfaces(2500Vrms)
