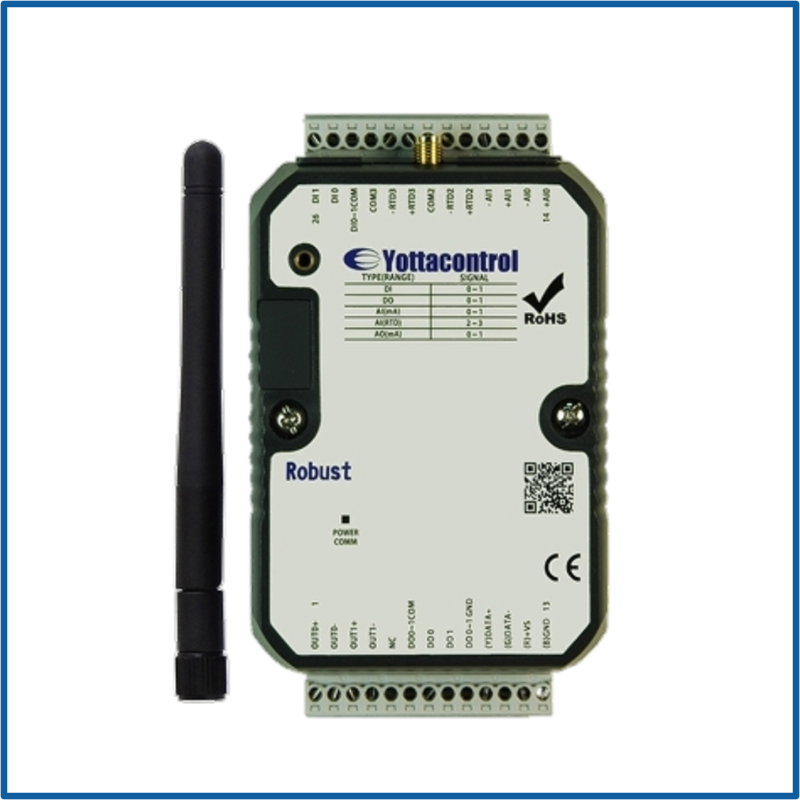

Remote Module (RS-485) 3DI 4AI 2DO 2AO
SKU: A-1012-plus
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-10x RS-485 I/O module, support protocol:
Modbus RTU/ASCII
LED - DC Power, Remote Module ADIO
4AI (0~20/4~20mA + PT - 100/1000) isolated, 2AO(0~20/4~20mA), 2DI, 2DO (Source Output)
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC/24VAC
Inputs(Isolation): 2*isolation DI; status low<1VDC; high>8~30VDC
Outputs: 2* (Source Transistor)
Continuous Current: 10-35VDC(1A)
Communication Baud Rate: 2400~115200bps
Isolation: YES (3500VDC)
Input/Output Operating Frequency: 10HZ
Operation Temperature: -20 to +75 °C
Degree Of Protection: IP20
Analog inputs: 4 (16-bit)
Analog input Type: 2* 0/4~20mA + 2* PT-100/1000
Analog Outputs: 2 (12-bit)
Analog Outputs Type: 0/4 ~20mA
Analog Input/Output Accuracy: ±0.1%/ ±1%
Interface: RS-485
Channel Independent Configuration: YES
Sampling Rate: 10 sample/second (total)
CMR @ 50/60 Hz: 120 dB
Span Drift: ±50 ppm/°C
Zero Drift: ±18 μV/°C
Temperature Ranges: (PT-100:-200~+600°C) (PT-1000:-200~+600°C)
Isolated RS-485 interfaces (2500Vrms)
Input Impedance:
Current: 100 Ω
RTD: 10 MΩ
