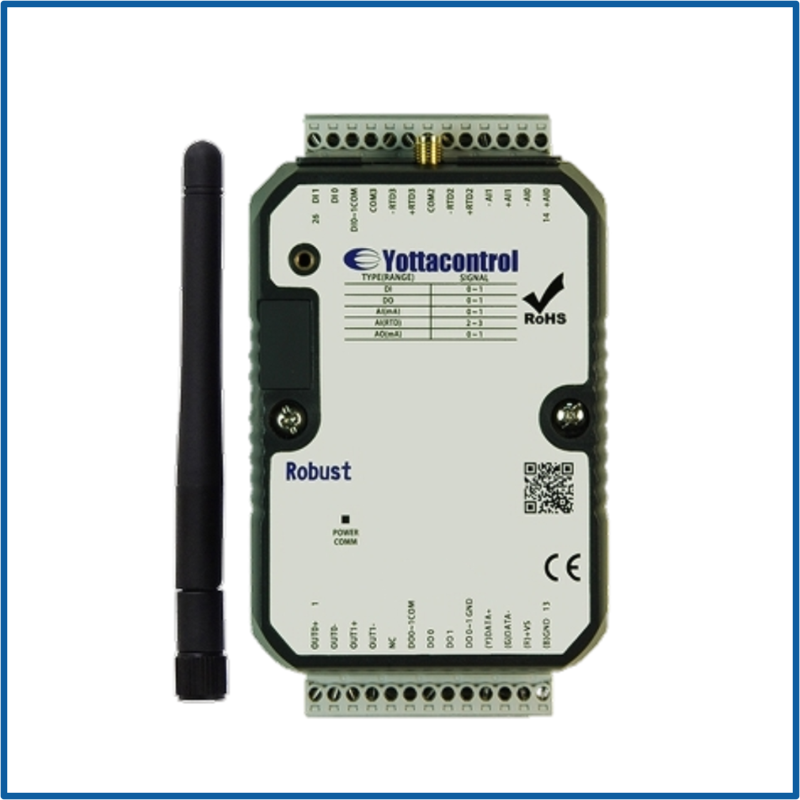

Remote Module(RS-485), 2DI, 4AI(V), 2DO, 2AO
SKU: A-1013
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-10x RS-485 I/O module, support protocol:
Modbus RTU/ASCII
LED
DC Power Supply
Remote Module ADIO
4AI (0~10V/2~10V + PT - 100/1000)
2AO (0~10V/2~10), 2DI, 2DO (Source Output)
RS-485*1, USB*1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC/24VAC
Outputs: 2* (Source Transistor)
Continuous Current: 10-35 VDC (1A)
Communication Baud Rate: 2400~921600 bps
Isolation: YES (5000VDC)
Input/Output Operating Frequency: 10 HZ
Operation Temperature: -20 to +75 °C
Degree Of Protection: IP20
Analog inputs: 4 (16-bit)
Analog input Type: 2* 0/2~10V + 2* PT-100/1000
Analog Outputs: 2 (12-bit)
Analog Outputs Type: 0/2 ~10V
Input Impedance: Current: 100 Ω / RTD : 10 MΩ
Analog Input/Output Accuracy: ±0.1%/ ±1%
Interface: RS-485 + USB
Channel Independent Configuration: YES
Sampling Rate: 10 sample/second (total)
CMR @ 50/60 Hz: 120 dB
Span Drift: ±50 ppm/°C
Zero Drift: ±18 μV/°C
Temperature Ranges: (PT-100:-200~+600°C) (PT-1000:-200~+600°C)
Inputs (Isolation):
2*isolation DI
Status low: <1 VDC
High: >5~30 VDC
