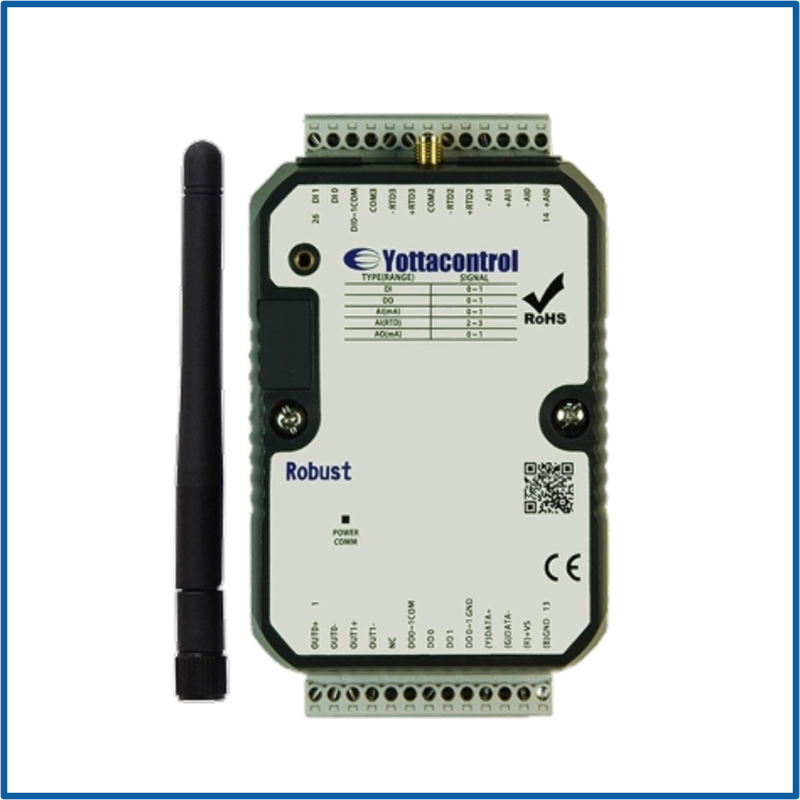

Remote Module (RS-485) 8AI 4DI A-1019

Specifications: Operation Voltage: 10~30VDC/24VAC Inputs(Isolation): 4 Communication Baud Rate: 2400~921600bps Isolation: YES (5000VDC) Input Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Analog inputs: 8 (16-bit) Analog input Type: 0/4~20mA, J,K,T,E,R,S,B Thermocouple ,Thermistor Input Impedance: Current: 100 Ω / Voltage : 10 MΩ Input Accuracy: ±0.1% Interface: RS-485 + USB Channel Independent Configuration: YES Sampling Rate: 10 sample/second (total) CMR @ 50/60 Hz: 120 dB Span Drift: ±50 ppm/°C Zero Drift: ±18 μV/°C Temperature Ranges: (J: -210~760°C) (K: -270~1,370°C) (T: -270~400°C) (E: -270~1,000°C) (R: 0~1,750°C) (S: 0~1,750°C) (B: 0~1,800°C) (Thermistor-10K-T2: 0~100°C) (Thermistor-10K-T3: 0~100°C) (Thermistor-6.8K: -10~100°C) (Thermistor-4.7K: -10~100°C) (Thermistor-3.3K: -20~100°C) (Thermistor-3K: -20~100°C) (Thermistor-2.7K: -20~100°C) (Thermistor-2.252K: -20~100°C) (Thermistor-2.1K: -30~100°C) (Thermistor-2K: -30~100°C) (Thermistor-1.5K: -40~100°C) (Thermistor-1K: -40~100°C)
