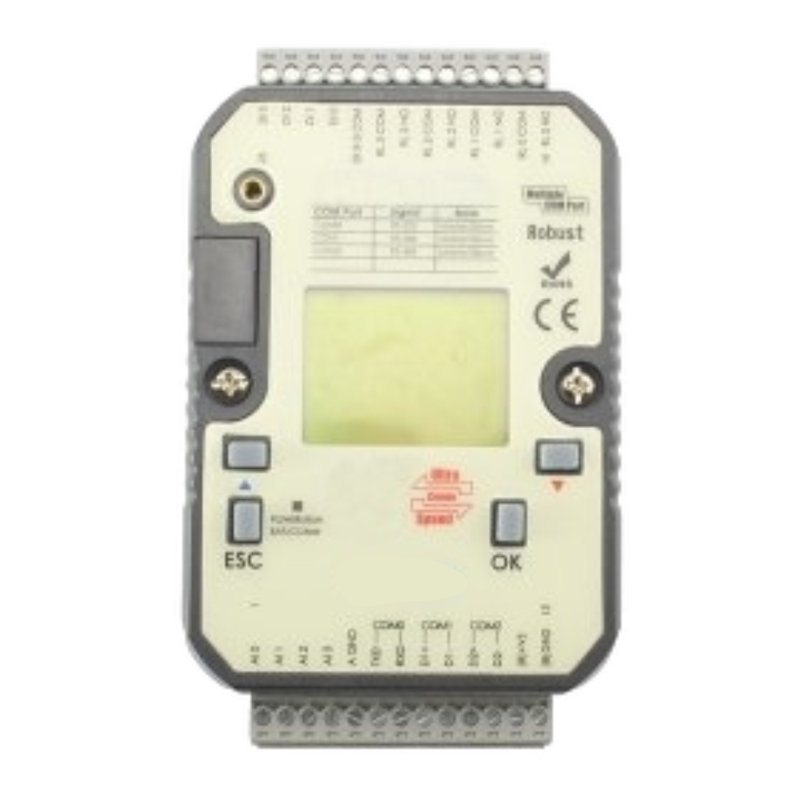

Distributed control system controller A-1189D
SKU: A-1189D
Price on request
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A1 Series:
LD plus FBD System Assistance Launch Display (108*64)
Many communication ports
Copy protection and password protection.
36 integrated, previously examined functionalities
It is possible to link a 1024 function block.
Text message display
Data latch integrated
Easily scalable to a maximum of 4000 points
Provide complete Modbus protocol support.
PC programs "Yotta Edit" and "Yotta Utility" are free.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
4DI,4AI,4DO(Relay),108*64 LCM, RS-232*1, RS-485*2
Inputs: 4
Analog inputs: 4 (10-bit)
Supply voltage: 10~30 VDC.
Outputs: 4
Real-time Clock/reserve power: yes/> 2 years
Operation temperature: -20°C to +75°C
Storage temperature: -25°C to +80°C
Linking of functions: 1024 (max.)
Input Operating frequency: 15000 Hz (Total 60000 Hz)
Communication Port: RS-232*1 and RS-485*2
Display/LED: Yes
Degree of protection: IP20
Main I/O Points: 12 points, support 7 units AIO/DIO extension modules
Real-time Clock: Yes
Password protection: Multi password protection
Communication Baud Rate: 1200~115200 bps.
Analog Input type: 0~10 VDC
Continuous current:
Relay: 5A for resistive load, 2A for inductive load
Transistor: NPN open controller, max. 1000Ma at 30 VDC
Communication Protocol:
Master: Modbus ASCII/RTU
Slave: Modbus ASCII/RTU
Digital Input signal status:
DC Supply type
Status low: <2 VDC
Status high: >4 VDC
