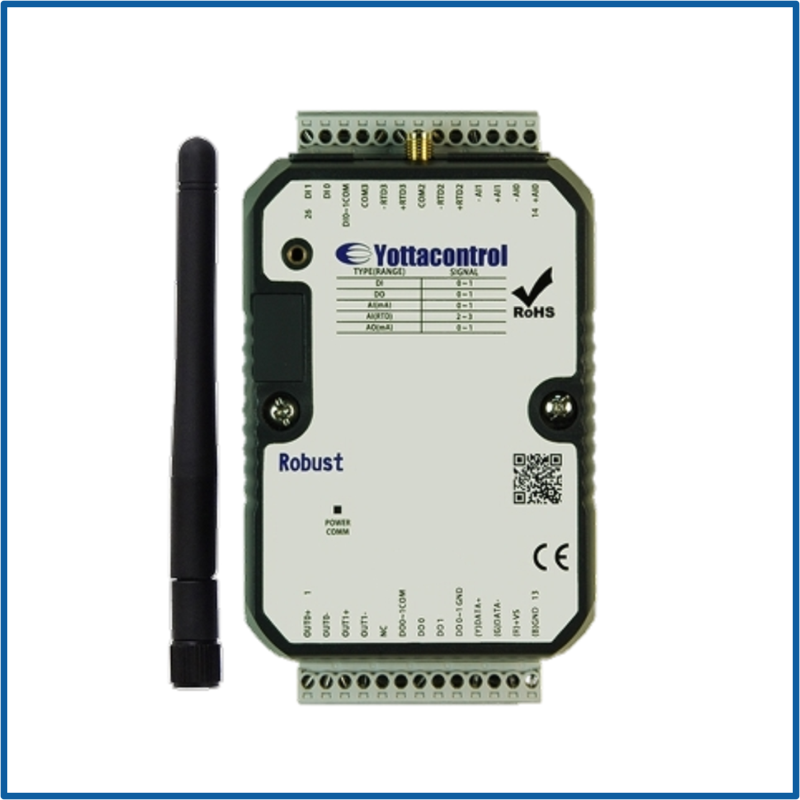

Remote Module(WIFI), 2DI, 4AI, 2DO, 2AO
SKU: A-1213
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-21x WIFI I/O module, support protocol:
Modbus RTU/ASCII, Modbus TCP/IP; Modbus over TCP/IP; Modbus over UDP/IP
WIFI Remote Modules ADIO
4AI (0~10V/2~10V + PT - 100/1000)
2AO (0~10V/2~10V),
2DI, 2DO (Source Output)
WIFI*1, RS-485*1, USB*1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Function Voltage: 24 VAC / 10~30 VDCTwo * Isolation DI inputs
Low status: less than 1VDC
High status: >5~30 VDC
Two* (Transistor) outputs
Constant Current: 1A at 10~35 VDC
Baud Rate of Communication: 2400–921600 bps
Yes, isolation (5000VDC)
Operating frequency of input: 10 Hz.
Transistor operating frequency for the output is 10 Hz.
Warmth Range for Operation: -20 to +75 °C
Protection Level: IP20
Installing: flush mounting or 35 mm DIN rail
Dimensions: 76.4 * 118.2 * 38.5 mm (W x H x D mm).
Four analog (16-bit) inputs
2*0/2~10V2*PT-100/1000, (-200 ~ +600°C) is the type of analog input.
Twelve-bit analog outputs: two
Type of Analog Output: 0/2~10V
Enter Data Impedance: RTD: 10MΩ / Current: 100 Ω.
Accuracy of analog input/output: ±0.1% / ±1%
Interface: USB Channel, RS-485, and WiFi Separate Setting up: AGREE
Sample Rate: Ten samples per second in total
120 dB CMR at 50/60 Hz
