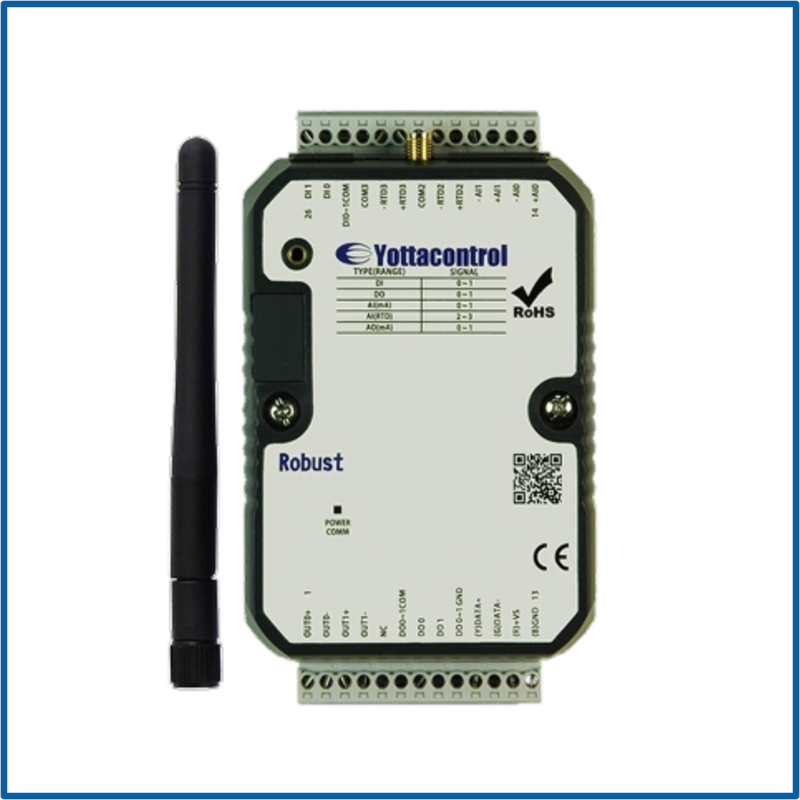

Remote Module(WIFI), 4DI, 8AI(0-10V)-16bits
SKU: A-1220
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-12x series WIFI I/O module, support protocol:
Modbus RTU/ASCII, Modbus TCP/IP; Modbus UDP/IP; Modbus over TCP/IP; Modbus over UDP/IP
WIFI Remote Modules ADIO
8AI (0~10V) - 16 bits, 4DI
WIFI*1, RS-485*1, USB*1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operating Voltage: 24 VAC / 10~30 VDC
Baud Rate of Communication: 2400–921600 bps
Yes, isolation (5000VDC)
Operating frequency of input: 10 Hz.
Operating Frequency of Output: 10Hz for the transistor.
Warmth Range for Operation: -20 to +75 °C
Protection Level: IP20
Installing: flush mounting or 35 mm DIN rail
Dimensions: 76.4 * 118.2 * 38.5 mm (W x H x D mm).
8 analog (16-bit) inputs
Type of Analog Input: 0/2~10V
Input and Output Analog Precision: ±0.1% / ±1%
Interface: USB Channel, RS-485, and Wi-Fi Separate Setting up: AGREE
Sample Rate: Ten samples per second in total
Four * Isolation DI inputs
Low status: less than 1VDC
High status: >5~30 VDC
