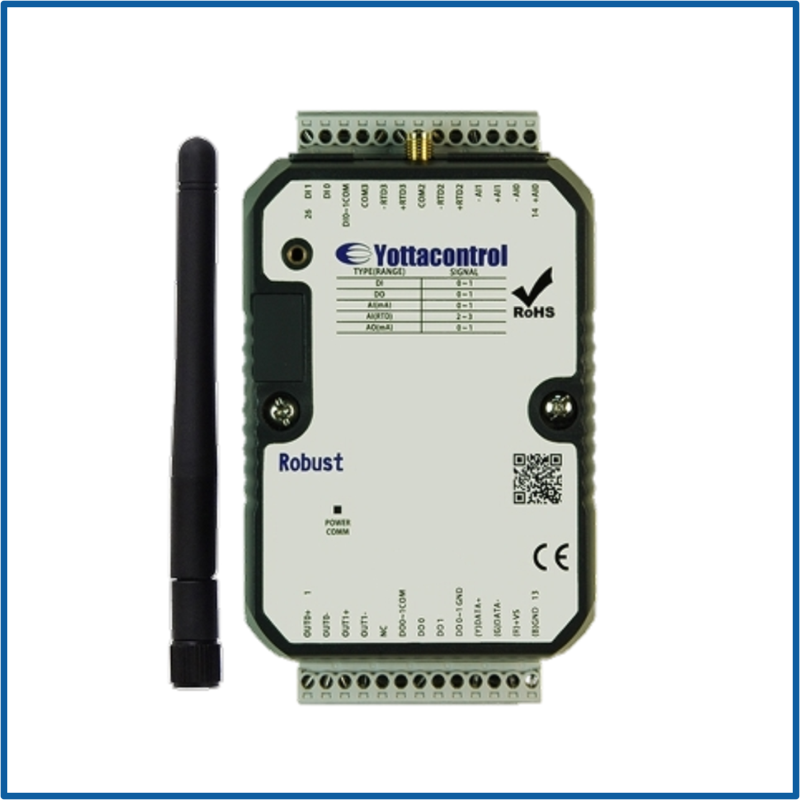

Remote Module (WIFI) 8DO 4AI
SKU: A-1269
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-12x WIFI I/O module, support protocol:
Modbus RTU/ASCII, Modbus TCP/IP; Modbus UDP/IP; Modbus over TCP/IP; Modbus over UDP/IP
WIFI Remote Modules ADIO
8DO/4AI (0~10V), Power Relay Output
WIFI*1, RS-485*1, USB*1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC/24VAC
Outputs: 8*(Power Relay)
Continuous Current: 250VAC(5A)/30VDC(5A)
Communication Baud Rate: 2400~921600bps
Isolation: YES(5000VDC)
Output Operating Frequency: 10HZ
Operation Temperature: -20 to +75 °C
Degree Of Protection: IP20
Analog inputs: 4 (12-bit)
Analog input Type: 0~10V
Input Impedance: Voltage:10 MΩ
Input Accuracy: ±1%
Interface: WIFI + RS-485 + USB
Channel Independent Configuration: YES
Sampling Rate: 10 sample/second (total)
CMR @ 50/60 Hz: 120 dB
Span Drift: ±50 ppm/°C
Zero Drift: ±18 μV/°C
