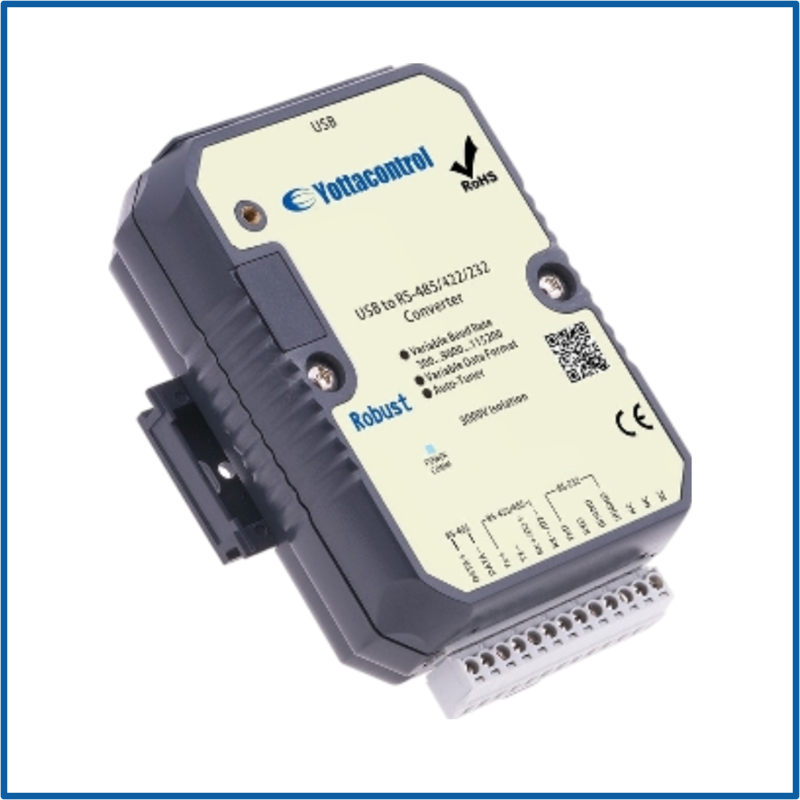

Converter, RS-232 to RS-485/422/232
SKU: A-1521
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-15x series converter:
Auto Tuner baud rate, 300~115200 bps
3000 VDC isolation protection
ESD protection
Power Inputs + 10~ +30 VDC (RS-232 type)
No external power supply (USB type)
Fully compliant with USB 1.1/2.0
DIN-Rail or wall mounting
Driver support Windows 98/ME/2000/XP/Window7/WinCE/Mac/Vista/Linux/Windows Server 2008 R2/Android
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: RS-232 to RS-485/422/232
Speed: Auto Tuner baud rate, 300~115200 bps
Transfer distance: max. 1,200 m for speed 9.6 K bps, max. 400 m for speed 115.2 K bps
Support max device: maximum of 256 devices (without repeater)
ESD Protection: Yes
Supply Voltage: 10~30 VDC.
Power consumption: Nearly 24 V/0.5W
Operation temperature: -20°C to +75°C
Storage temperature: -25°C to +80°C
Installation: DIN-Rail or wall mounting
Connection: DB9 (Female to RS-232)/USB (Type B); Removable 13-pin Terminal Block (For RS-422/485/232)
