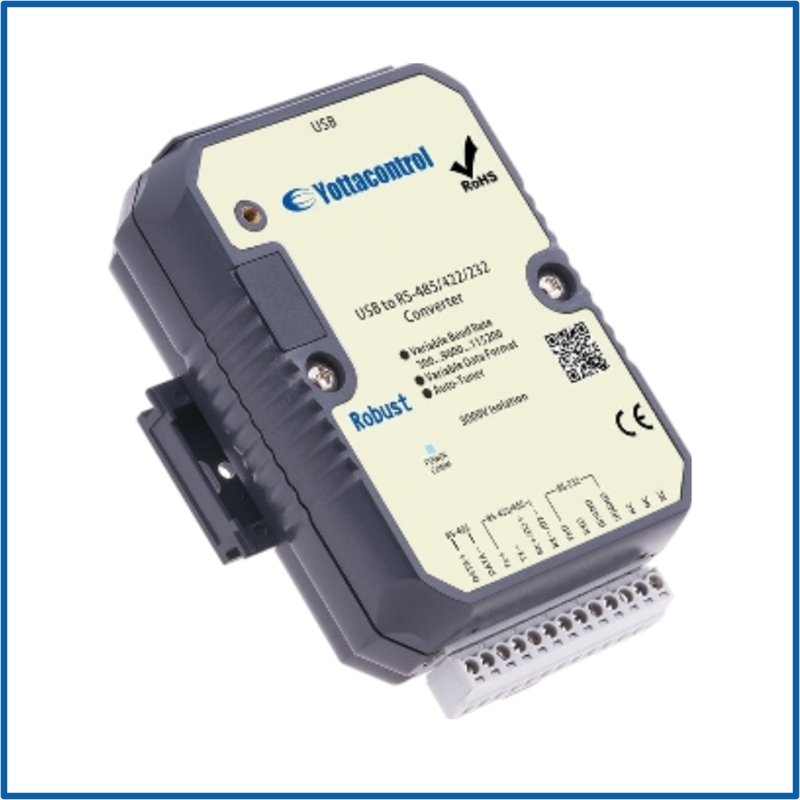

Converter USB to RS-485/422/232 (A-1521U)
SKU: A-1521U
Price on request
Availability: In Stock (7 on hand)
Short Description
A-15X Series Converter:
- Auto Tuner baud rate, 300~115200bps
- 3000VDC isolated protection
- ESD protection
- Power Inputs +10~ +30VDC (RS-232 type)
- No external power supply (USB type)
- Fully compliant with USB 1.1/ 2.0
- DIN-Rail or wall mounting
- Driver support Windows 98/ ME/ 2000/XP/ Window7/ Windows Server 2008 R2/ Android
Specifications:
- Interface: USB to RS-485/ 422/ 232
- Speed: Auto Tuner baud rate, 300~115200 bps
- Transfer distance: Max. 1,200m for speed 9.6K bps; Max. 400m for speed 115.2K bps.
- Support Max device: Maximum od 256 devices (Without repeater)
- ESD Protection: Yes
- Supply Voltage: -
- Power Consumption: Nearly USB Port/ 0.5W
- OS Driver: Windows 98/ ME/ 2000/ XP/ Windows7 (32/64bit)/ WinCE/ Vista (32/64bit)/ Linux/ Mac.
- Operation temperature: -20°C to +8-°C
- Storage temperature: -25°C to +80°C
- Installation: DIN-Rail or wall mounting
- Connection: DB9 (Female to RS-232)/ USB (Type B); Removable 13-pin Terminal Block (For RS-422/ 485/ 232)
