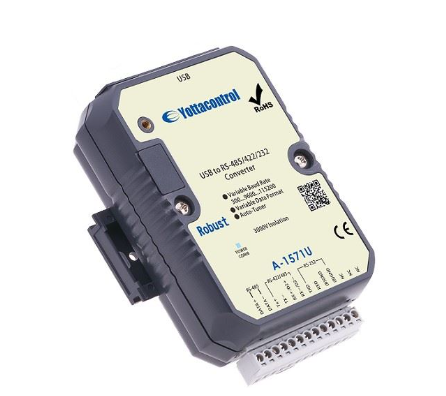

Converter USB to RS-485/422/232
SKU: A-1571U
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-15X Series Converter:
Auto Tuner baud rate, 300~115200bps
3000VDC isolated protection
ESD protection
Power Inputs +10~ +30VDC (RS-232 type)
No external power supply (USB type)
Fully compliant with USB 1.1/ 2.0
DIN-Rail or wall mounting
Driver support Windows 98/ ME/ 2000/XP/ Window7/ Windows Server 2008 R2/ Android
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: USB to RS-485/ 422/ 232
Speed: Auto Tuner baud rate, 300~115200 bps
Transfer distance: Max. 1,200m for speed 9.6K bps; Max. 400m for speed 115.2K bps.
Support Max device: Maximum od 256 devices (Without repeater)
ESD Protection: Yes
Supply Voltage: -
Power Consumption: Nearly USB Port/ 0.5W
OS Driver: Windows 98/ ME/ 2000/ XP/ Windows7 (32/64bit)/ WinCE/ Vista (32/64bit)/ Linux/ Mac/ Windows Server 2008 R2/ Android
Operation temperature: -20°C to +8-°C
Storage temperature: -25°C to +80°C
Installation: DIN-Rail or wall mounting
Connection: DB9 (Female to RS-232)/ USB (Type B); Removable 13-pin Terminal Block (For RS-422/ 485/ 232)
