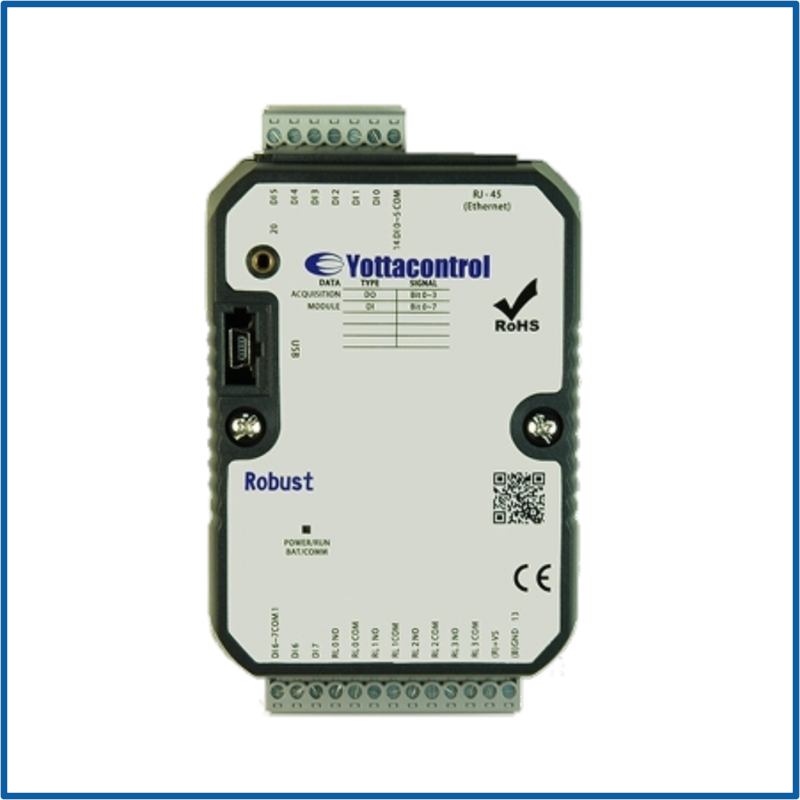

Remote Module (Ethernet), 8DI 4DO Power Relay
SKU: A-1860
Price on request
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-18x Ethernet I/O module, support protocol:
Modbus RTU/ASCII, Modbus TCP/IP; Modbus UDP/IP
Ethernet Remote Module DIO
8DI/ 4DO, Power Relay Output
Ethernet*1, USB*1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC/24VAC
Outputs: 4*(Power Relay)
Continuous Current: 250VAC(7A)/30VDC(7A)
Inputs (Isolation): 8
Communication Baud Rate: 2400~921600bps
Isolation: YES (5000VDC)
Output Operating Frequency: 10HZ
Operation Temperature: -20 to +75 °C
Degree of Protection: IP20
Interface: ETHERNET + USB
Channel Independent Configuration: YES
Sampling Rate: 10 sample/second (total)
