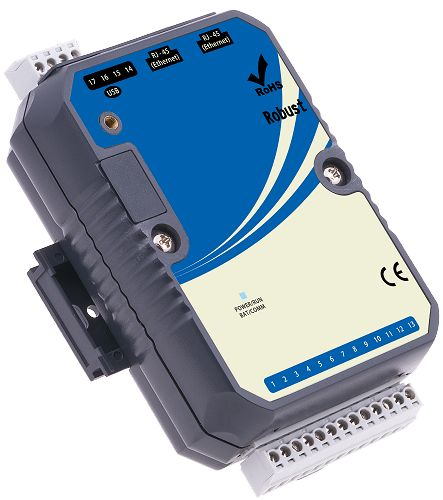

Remote Module (2Port Ethernet) 5DI 4DO Power Relay
SKU: A-1960
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-19x Ethernet I/O module, support protocol:
Modbus RTU/ASCII, Modbus TCP/IP; Modbus UDP/IP
Ethernet Remote Modules DIO
2 port Ethernet, 5DI, 4DO Power Relay Output
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC/24VAC
Inputs: 5*Isolation DI status low:<1VDC status high:>5~30VDC
Outputs: 4*DO (Power Relay)
Continuous Current: 250VAC(5A)/30VDC(5A)
Communication Baud Rate: 10/100Mbps
Isolation: YES (5000VDC)
Input Operating Frequency: 10HZ.
Output Operating Frequency: 10HZ.
Operation Temperature: -20 to +75 °C
Degree Of Protection: IP20
Installation: 35 mm DIN rail or Flush mounting
Dimension (W x H x D mm): 76.4*118.2*38.5 mm.
Interface: Ethernet * 2 + USB
Channel Independent Configuration: YES
