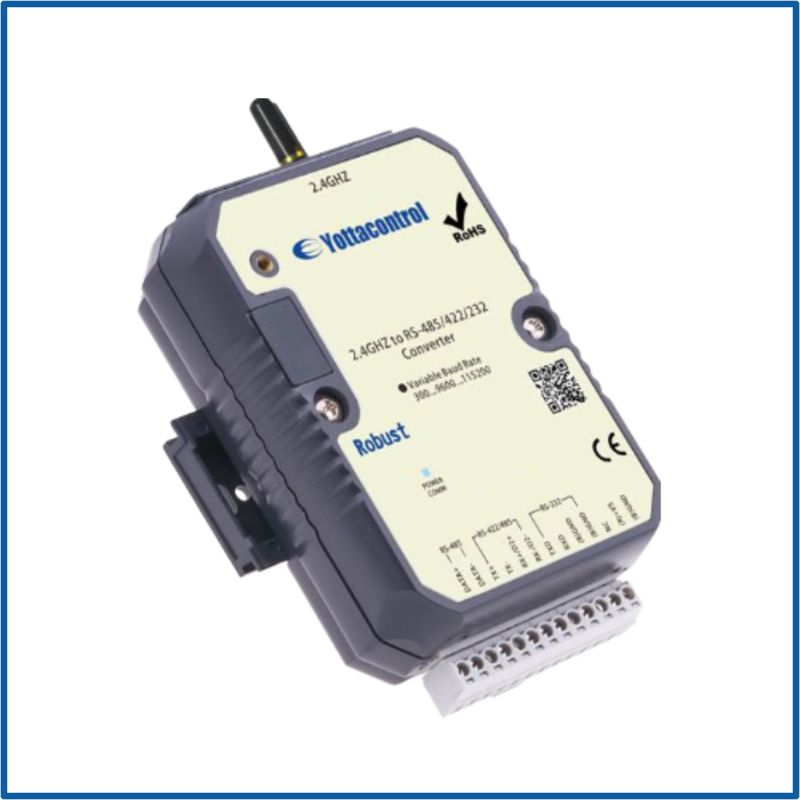

Wireless Converter (2.4G TO RS-485 / 422 / 232)
SKU: A-3450
Price on request
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-3450 Wireless Data Converter:
Sight distance credible transmission distance is up to 100m
Offer byte-oriented transparent data adaptable to various user protocols
Can be applied to manifold communication combination methods like point to point, point to multi-point and multi-point to point.
Automatically filtrate fake data generated in air, can transmit longer data frames.
High efficiency forward error correction channel coding technology, anti-jamming data.
2.4GHz ISM frequency range, need not apply for frequency pint.
Equipped with 50 ohm SMA antenna pedestal, offer manifold antenna options.
Meanwhile offer RS-232/RS-485/RS-422 level interface
Effective speed 300~115200bps.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC/24VAC
Supports Max device: Maximum of 256 devices (Without repeater)
Frequency range: 2400 – 2483.5 MHz
Operation temperature: -20°C to +75 °C
Storage temperature: -25 °C to +80 °C
Installation: 35 mm DIN rail or Flush mounting
Connection: Removable 13-pin Terminal Block ( For RS-422 / 485 / 232 )
RF Module's Groups: 0~65535
RF Module's ID: 0~65535
RF Module's TX Power: 0~6
RF Module's Channel: 0~200
RF Module's Data Rate: 250K
Dimension (W x H x D mm): 76.4*118.2*40.7 mm
