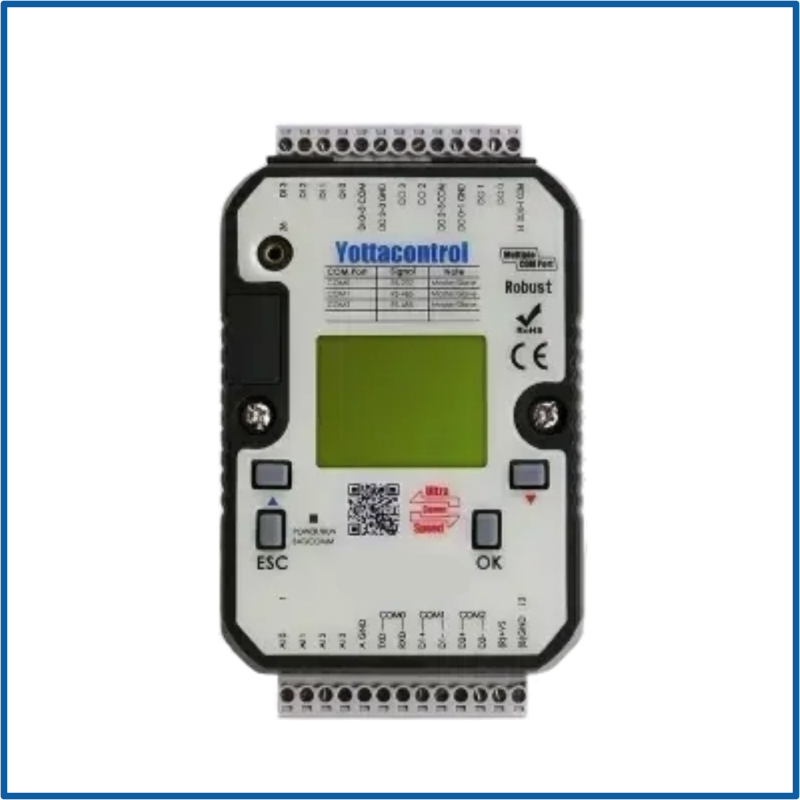

8DI DC LMC R/O

Specifications: Operation Voltage: 10~30VDC/24VDC Inputs: 8*DI(Isolation) status low:<2VDC status high:>4VDC Outputs: 4*Isolation(Relay) Continuous Current: Relay: 5A(with resistive load), 2A(with inductive load) Output Operating Frequency: Relay: 30HZ Input Operating Frequency: 250KHZ (Total 1000KHZ) RTC/ Hold During Power Off: Yes Operation Temperature: -20 to +75 °C Communication Ports: USB*1 & RS-485*2 & RS-232*1 Communication Baud Rate: 2400~921600bps Degree Of Protection: IP20 Base Controller IOs: 12 IOs Installation: 35 mm DIN rail or Flush mounting Dimension (W x H x D mm): 76.4*118.2*40.7 mm Communication Cable: CAB-MINIUSB60 or RS-485 or RS-232 *D = LCM Type / *M = Micro-SD Type
