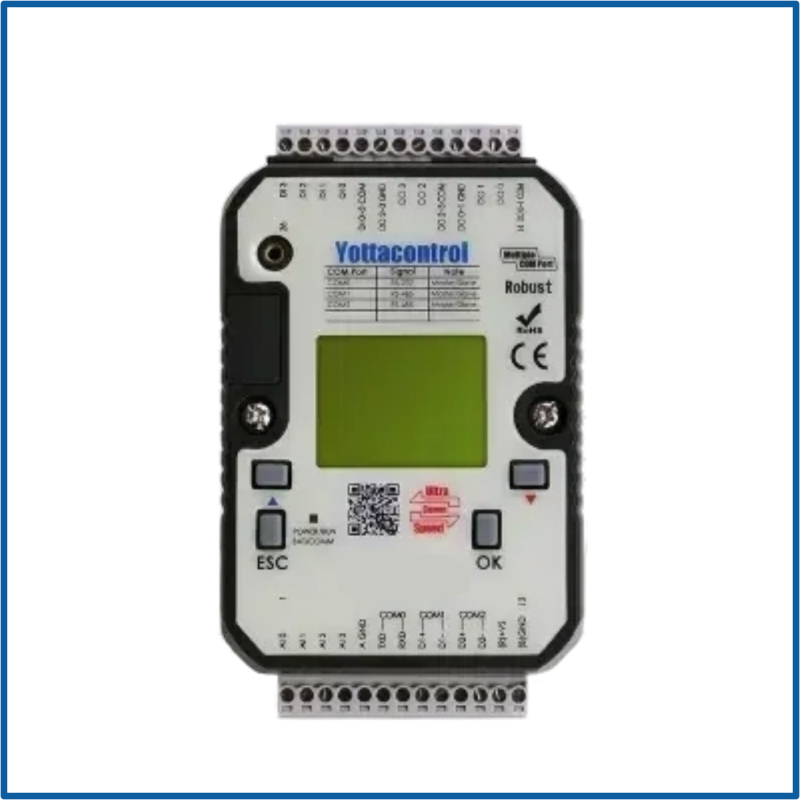

DCS Controller 4DI 4AI 4DO DC LCM T/O
SKU: A-5189D-T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-51x series controller, support protocol:
Modbus RTU/ASCII
DC Power Supply
CPU Display
LCM
4DI/ 4AI/ 4DO, Transistor Output
RS-232*1, RS485*2, USB2.0*1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC/24VDC
Outputs: 4*Isolation (Transistor)
Continuous Current: Transistor 1.75A (OCP/OTP/UVLO)
Output Operating Frequency: Transistor: 100KHZ
Input Operating Frequency: 250KHZ (Total 1000KHZ)
RTC/ Hold During Power Off: Yes
Operation Temperature: -20 to +75 °C
Communication Ports: USB*1 and RS-485*2 and RS-232*1
Communication Baud Rate: 2400~921600bps
Degree Of Protection: IP20
Base Controller IOs: 12 IOs
Installation: 35 mm DIN rail or Flush mounting
Dimension (W x H x D mm): 76.4*118.2*40.7 mm
Communication Cable: CAB-MINIUSB60 or RS-485 or RS-232
*D = LCM Type / *M = Micro-SD Type
Inputs:
4*DI (Isolation)
4*AI (0~10VDC)
Status low: <2VDC
Status high: >4VDC
