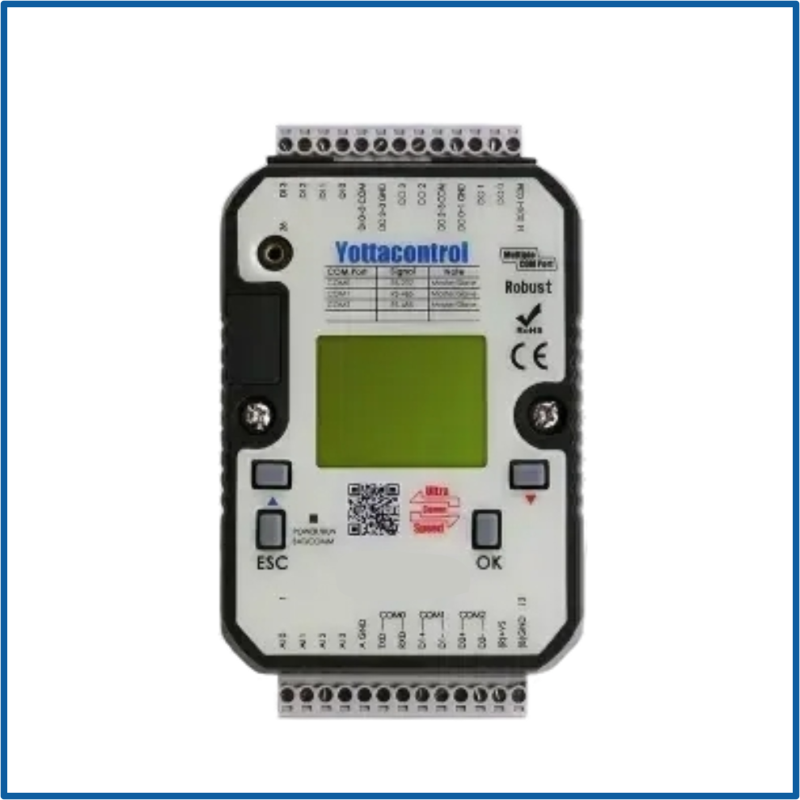

DCS Controller 2DI 2AI 2PT-100 2DO 2A0 DC LED
SKU: A-5190
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-51x series conroller, support protocol:
Modbus RTU/ASCII
DC Power Supply
CPU Standard
2DI/ 2DO (Transistors)/ 2AI (0/ 4~20mA)/ 2AI (PT - 100)/ 2AO (0/ 4~20mA)
RS-485*1, USB2.0*1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC/24VDC
Digital Inputs: 2*DI(Isolation) status low:4VDC
Analog Inputs: 2*Current(0/4~20mA)+2*PT-100(Range:-50~+200℃/Resolution:0.25℃)
Digital Outputs: 2*Isolation(Transistor)
Analog Outputs: 2*AO(0/4~20mA)
Continuous Current: Transistor 1.75A(OCP/OTP/UVLO)
Output Operating Frequency: Transistor:50KHZ
RTC/ Hold During Power Off: Yes
Operation Temperature: -20 to +75 °C
Communication Ports: USB*1 & RS-485*1
Communication Baud Rate: 2400~921600bps
Degree Of Protection: IP20
Base Controller IOs: 10 IOs
Installation: 35 mm DIN rail or Flush mounting
Dimension (W x H x D mm): 76.4*118.2*40.7 mm
Communication Cable: CAB-MINIUSB60 or RS-485
*D = LCM Type
