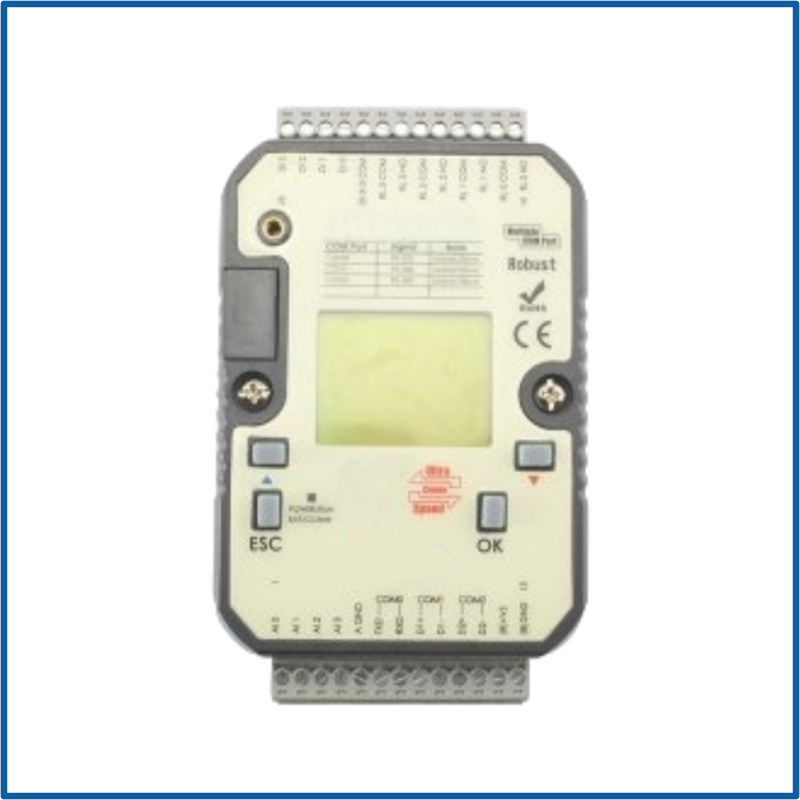

DCS WIFI Controller 8DI 4DO DC LCM R/O
SKU: A-5288D
Price on request
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-52x series controller, support protocol:
Modbus RTU/ASCII, Modbus over TCP/IP; Modbus over UDP/IP
WIFI Display CPU
LCM
DC Power Supply
8DI/ 4DO, Relay Output
Wi-Fi*1, RS232*1, RS-485*2, USB2.0*1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC/ 24VDC
Outputs: 4*Isolation (Relay)
Continuous Current: Relay: 5A (with resistive load), 2A (with inductive load)
Output Operating Frequency: Relay: 30HZ
Input Operating Frequency: 250KHZ (Total 1000KHZ)
RTC/ Hold During Power Off: Yes
Operation Temperature: -20 to +75 °C
Communication Ports: Wi-Fi*1 & USB*1 & RS-485*2 & RS-232*1
Communication Baud Rate: 2400~921600bps
Degree Of Protection: IP20
Base Controller IOs: 12 IOs
Installation: 35 mm DIN rail or Flush mounting
Dimension (W x H x D mm): 76.4*118.2*40.7 mm
Communication Cable: CAB-MINIUSB60 or RS-485 or RS-232 or Wi-Fi
Inputs:
8*DI (Isolation)
Status low: <2VDC
Status high: >4VDC
