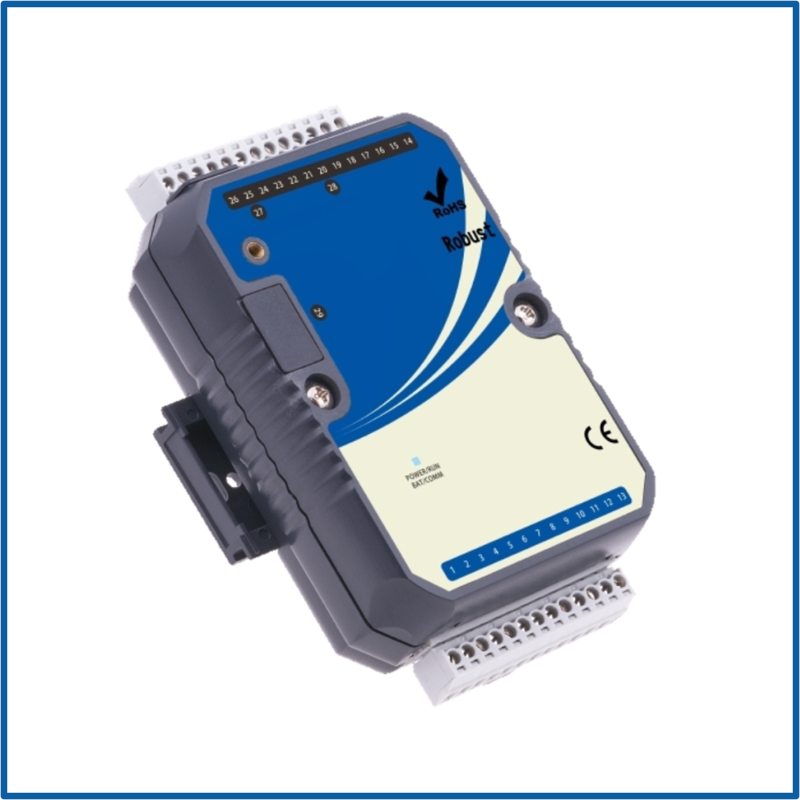

DCS Ethernet Controller, 6DI 4DO, Relay Output
SKU: A-5388
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-53x series Ethernet controller, support protocol:
Ethernet CPU
DC Power Supply
6DI/4DO, Relay output
Ethernet (100M)*1
RS-485*1, USB2.0*1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC / 24VAC
Digital Inputs: 6*DI(Isolation), status low:<3.9VDC, status high:>4VDC
Digital Outputs: 4*Isolation (Relay)
Continuous Current: Relay: 5A (with resistive load), 2A (with inductive load)
Input Operating Frequency: 250KHZ (Total 1000KHZ)
RTC/ Hold During Power Off: Yes
Operation Temperature: -20 to +75 °C
Communication Ports: USB*1 & RS-485*2 & RS-232*1 & Ethernet (100M)
Degree Of Protection: IP20
Installation: 35 mm DIN rail or Flush mounting
