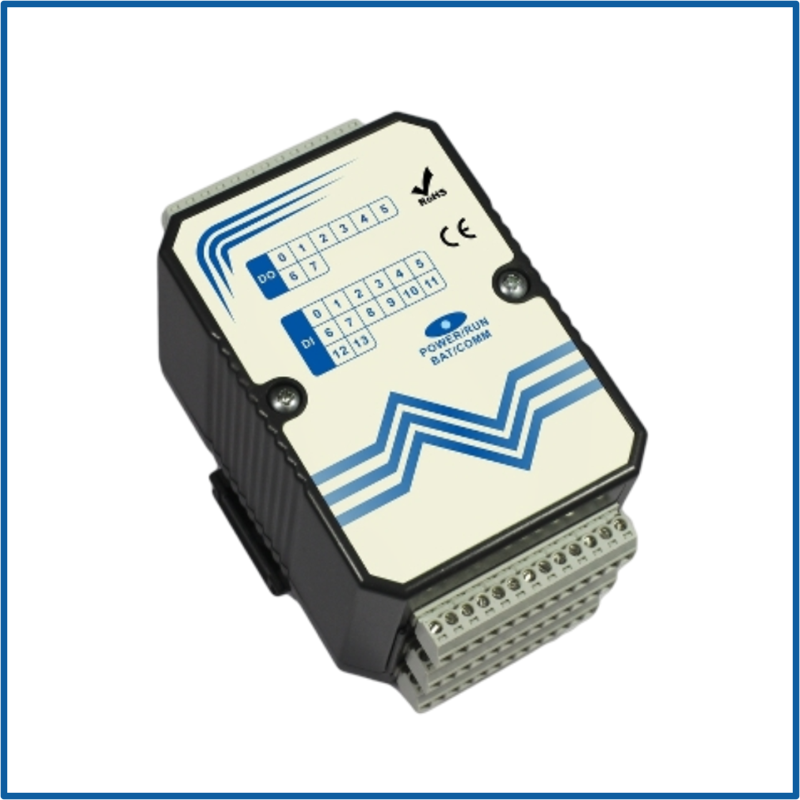

DCS Ethernet Controller, 14DI 8DO 4AI 2AO, SD available, R/O
SKU: A-5389
Price on request
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A-53x series Ethernet controller, support protocol:
Modbus RTU/ASCII, Modbus TCP/IP; Modbus UDP/IP
Ethernet CPU
DC Power Supply
14DI/8DO/4AI (0~10V) 2AO (0/4~20mA)
Relay Output, Ethernet (100M)*1, RS-485*2, USB2.0*1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operation Voltage: 10~30VDC / 24VAC
Digital Inputs: 14*DI(Isolation), status low:<3.9VDC, status high:>4VDC
Digital Outputs: 8*Isolation (Relay)
Continuous Current: Relay: 5A (with resistive load), 2A (with inductive load)
Analog Inputs: 4*AI(0~10VDC)
Analog Outputs: 2*AO (0/4~20mA
Input Operating Frequency: 250KHZ (Total 1000KHZ)
RTC/ Hold During Power Off: Yes
Operation Temperature: -20 to +75 °C
Communication Ports: USB*1 & RS-485*2 & RS-232*1 & Ethernet(100M)
Degree Of Protection: IP20
Memory card: Micro SD
Base Controller Ios: 28 AIOs
Installation: 35 mm DIN rail or Flush mounting
