      Fanless Edge Computing Controller

      SKU: A-9N

      Out of stock

      Availability: Out of Stock

      Short Description
      Product Overview: Yottacontrol offers the A-9N, a fanless Edge Computing Controller with Ethernet and serial port functionality. Different interfaces facilitate data transmission between parties, and common programs support a range of industrial projects when compared to traditional industrial controllers. With its third-party 4G/ 5G connectivity module, the A-9N can be utilized for Ethernet data transmission as well as other types of operations. It may also be utilized as a GPS tracking system for maritime or transportation management thanks to its third-party GPS functionality. It can be used to send camera video, Modbus data, and remote I/O in M2M applications. Large volumes of data may be processed by the high-performance CPU of the A-9N, which makes it appropriate for demanding industrial settings.

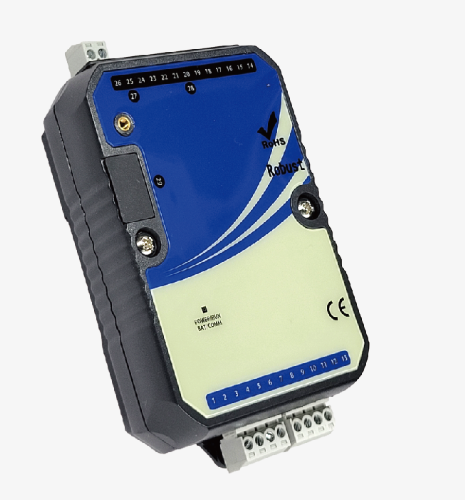

      A-9N
      Alternative image 1
      Specifications: CPU: TI Cortex-A8 ARM Memory: DDR3 512MB onboard Storage: eMMC 8GB onboard Expansion: 1 x USB 2.0 Host for Wi-Fi module / USB-HUB / KEY-board... Power Consumption: Max 10W Power Management: Auto Boot Dimensions: 72mm (W) x 118mm(D) x 34mm (H) I/O Interface-Front: 1 x Power LED 1 x RJ-45 10/100M fast Ethernet with LED 1 x USB Host 2.0 type A 1 x Phoenix connector for power (24-36VDC)/GND/ignition input I/O Interface-Rear: 1 x HDMI for 1920 x 1080 at 60HZ output 3 x RS-485 Operating System: lINUX (Debian 11.5) Built-in NODE-RED Environment: Operating temperature: -10°C to +55°C Storage temperature: -20°C to +85°C Relative humidity: 90% (non-condensing)
