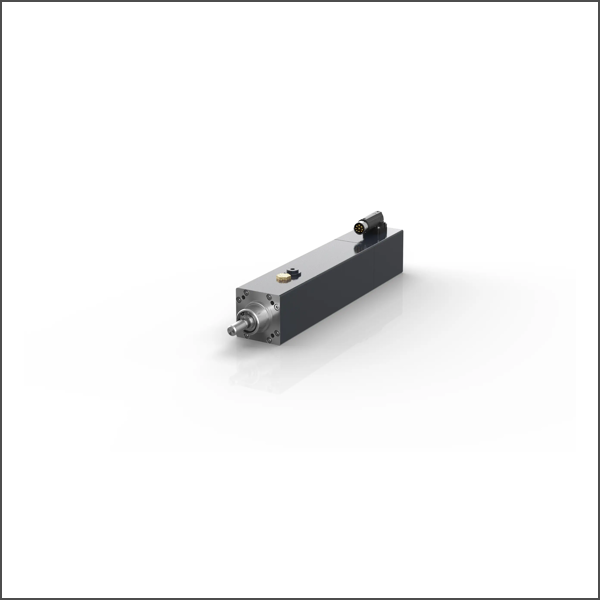

AA3023-4xyz Electric cylinder 3125 N (Fmax), 1.0 m/s (vmax)
SKU: AA3023-42H0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Motor type: permanent magnet-excited three-phase synchronous motor with integrated spindle drive
Rated supply voltage: 100…480 V AC
Peak force: 3125 N
Continuous force: 700 N
Peak current: 8.8 A
Continuous current: 2.0 A
Max. speed: 1.0 m/s
Max. acceleration: 20 m/s²
Max. travel distance: 150 mm
Spindle pitch: 10 mm with anti-twist protection
Cooling: convection
Motor feedback: OCT, 24 bit, SIL 2 , multi-turn absolute encoder
Connection method: itec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE
Buy currently uses Select Automation shop pricing and checkout.
Depending on the spindle pitch, the electric cylinder AA3023 offer a peak force of 3125…6250 N and a maximum speed of 0.5 to 1.0 m/s in a voltage range of 100 to 480 V AC.
