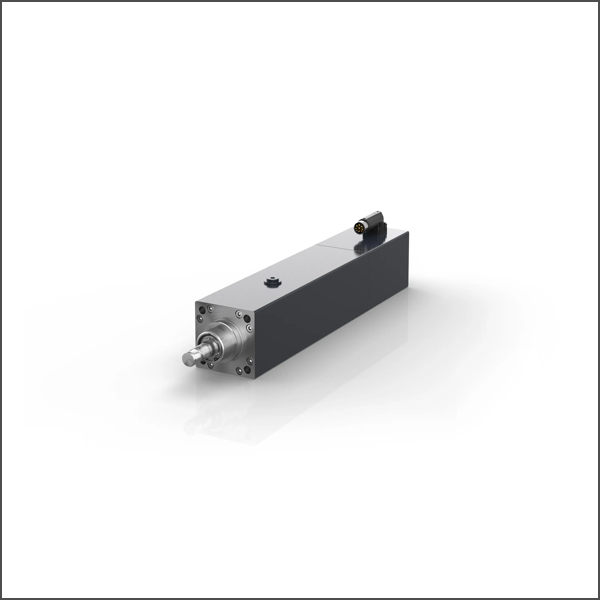

AA3033-23H1 Electric cylinder 12,500 N (Fmax), 0.5 m/s (vmax)

Motor type: permanent magnet-excited three-phase synchronous motor with integrated spindle drive Rated supply voltage: 100…480 V AC Peak force: 12,500 N Continuous force: 3700 N Peak current: 15 A Continuous current: 4.7 A Max. speed: 0.50 m/s Max. acceleration: 10 m/s² Max. travel distance: 200 mm Spindle pitch: 5 mm with anti-twist protection Cooling: convection Motor feedback: OCT, 24 bit, SIL 2 , multi-turn absolute encoder Connection method: itec® plug Ambient temperature (operation): +5…+40 °C Approvals/markings: CE
