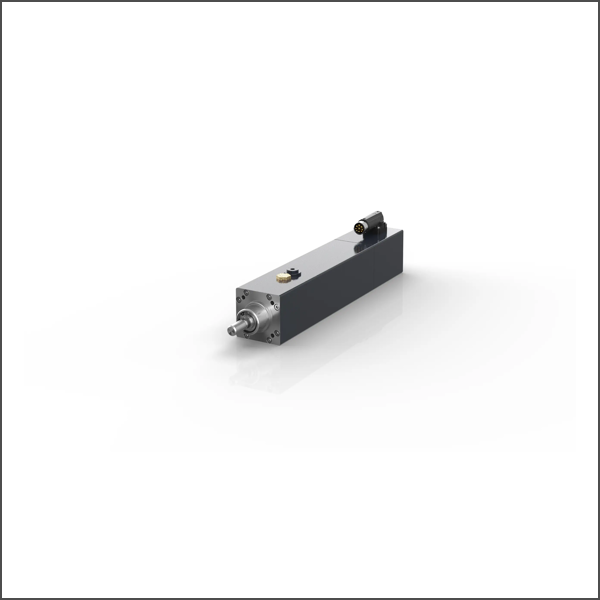

AA3123-22H0 Electric cylinder 5300 N (Fmax), 0.28 m/s (vmax)
SKU: AA3123-22H0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Motor type: permanent magnet-excited three-phase synchronous motor with integrated spindle drive
Rated supply voltage: 24…48 V DC
Peak force: 5300 N
Continuous force: 1300 N
Peak current: 32 A
Continuous current: 8 A
Max. speed: 0.28 m/s
Max. acceleration: 10 m/s²
Max. travel distance: 150 mm
Spindle pitch: 5 mm with anti-twist protection
Cooling: convection
Motor feedback: OCT, 24 bit, SIL 2 , multi-turn absolute encoder
Connection method: itec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE
Buy currently uses Select Automation shop pricing and checkout.
Depending on the spindle pitch, the electric cylinder AA3123 offer a peak force of 2650…5300 N and a maximum speed of 0.28 to 0.56 m/s in a voltage range of 24 to 48 V DC.
