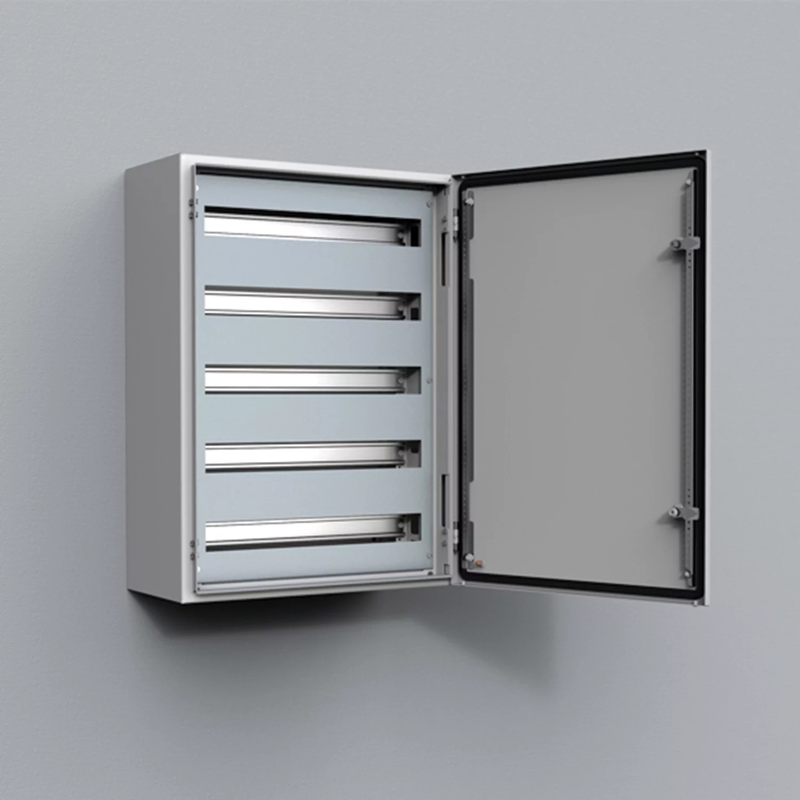

Modular Chassis, AC, 380x260x98mm, Light Gray, Mild Steel
SKU: AC04030R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Vent Hoffman Modular Chassis, AC is made to attach DIN-rail components in wall-mounted enclosures in an effective and safe manner.
This chassis makes installation simple and rapid, both in the field and at the panel manufacturers.
It has a front cover that shields wires and electrical connections, guaranteeing secure operation.
Flexibility and efficiency are increased by the modular architecture, which enables components to be pre-mounted onto the chassis before installation into the enclosure.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Description: Modular chassis for mounting DIN-rail components.
Dimensions: 380 mm x 260 mm x 98 mm.
Material: Mild steel.
Colour: Light grey.
DIN-Rail Components: Can mount components with a maximum height of 68 mm.
Distance Between Rows: 125 mm.
Usable Depth: 35 mm between front cover and external door.
Pack Quantity: Includes front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.
Installation: Suitable for MAS and ASR enclosures.
Feature: Front cover to protect electrical connections and cables.
Benefit: Allows for pre-mounting of modular components, ensuring quick installation and safe operations.
Additional Requirements: Machining required for stainless steel enclosures.
This modular chassis is an excellent solution for organizing and securing DIN-rail components, providing a neat and efficient setup for your enclosure.
