Modular Chassis, AC, 780x560x98mm, Light Gray, Mild Steel
SKU: AC08060R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

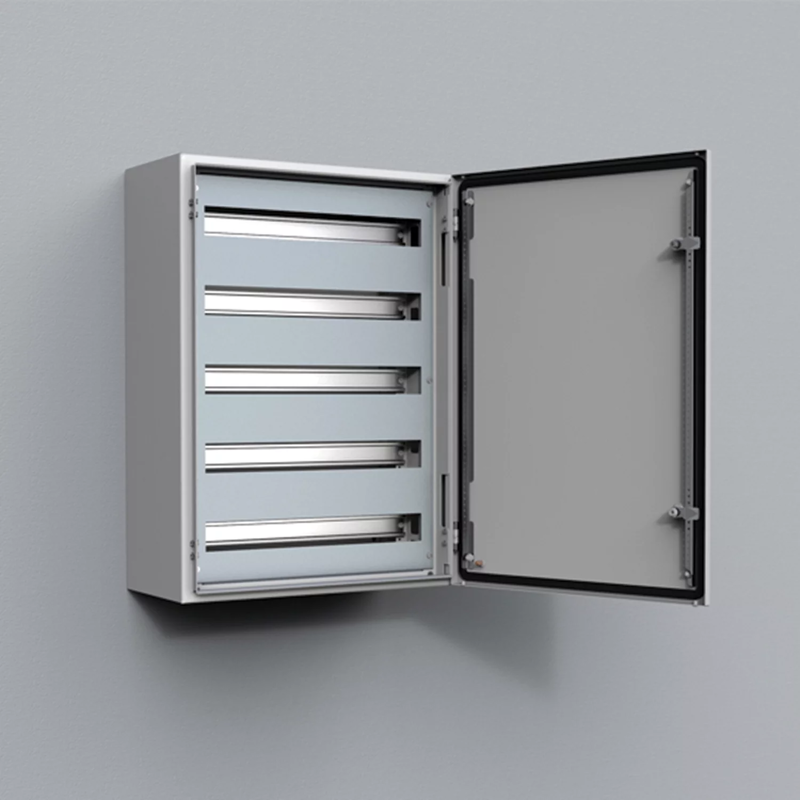

The AC08060R5 nVent Hoffman Modular Chassis is a highly adaptable and effective mounting option for DIN-rail components in wall-mounted enclosures.
This chassis, which is made of light grey mild steel and measures 780x560x98 mm, is elegant-looking and long-lasting.
It is perfect for field installations as well as panel builders since it makes DIN-rail component installation quick and simple.
To improve efficiency and organization, the modular design makes sure that parts can be pre-mounted onto the chassis before being inserted into the enclosure.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Front cover to protect electrical connections and cables.
Suitable for use with MAS and ASR enclosures.
Pre-mounting capability for enhanced efficiency.
Usable depth between front cover and external door: 35 mm.
Distance between rows: 125 mm.
Maximum height of DIN-rail components: 68 mm.
This modular chassis is perfect for applications requiring a reliable and organized mounting solution for DIN-rail components, ensuring safe and efficient operations.
Specifications:
Model Number: AC08060R5.
Dimensions: 780 x 560 x 98 mm.
Material: Light Gray Mild Steel.
Compatibility: Suitable for mounting DIN-rail components.
Function: Provides a modular chassis for DIN-rail components within wall-mounted enclosures.
Installation: Quick and easy installation for both panel builders and field settings.
Durability: High resistance to wear and corrosion.
