Inner Doors, ADI, 774x561x71mm, Light Gray, Mild Steel
SKU: ADI08060R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

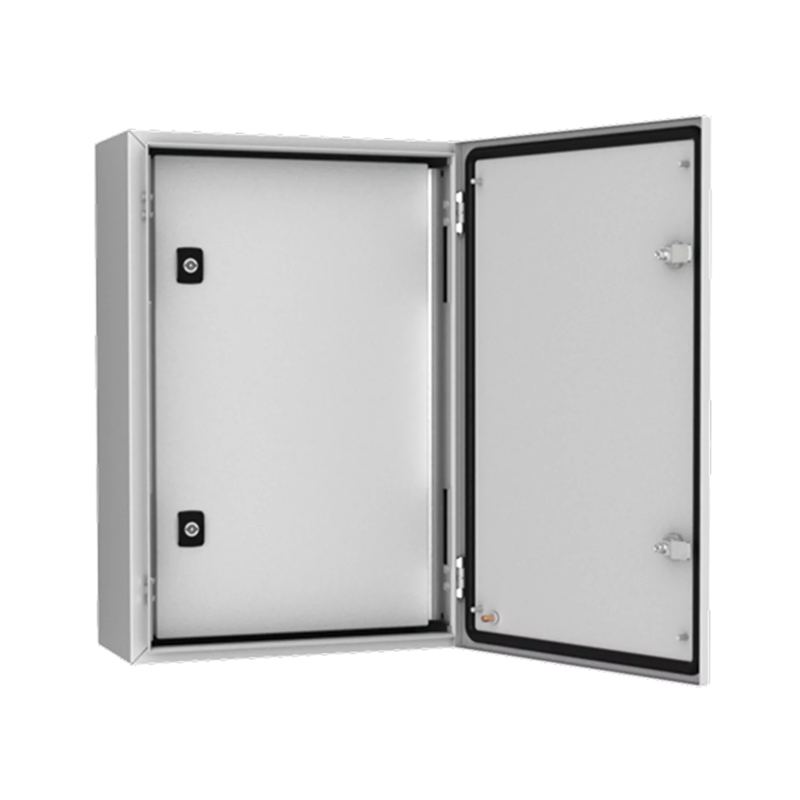

The ADI08060R5 Vent Hoffman Inner Door is a strong and adaptable option that improves the security and operation of wall-mounted enclosures.
This inner door, which is 774x561x71 mm in size, is made of premium mild steel and has a light grey finish.
It gives the enclosure an extra mounting surface so that controllers, meters, and other parts can be installed while being protected from unwanted access.
There is installation flexibility because the door can be hinged to open from either the left or the right side.
It guarantees that only authorized workers can contact the inside components and is especially helpful in applications that also use a glass door.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model Number: ADI08060R5.
Dimensions: 774x561x71mm.
Material: Mild Steel.
Colour: Light Gray.
Usable Depth Between Inner and External Door: 35mm.
Adjustable Depth Position: Yes, with AMG accessory.
Lock Type: Double-bit 3 mm insert; doors 700 mm high and above have 2 locks.
Mounting: Hinges can be mounted for left or right-hand opening.
Pack Quantity: Includes inner door, two vertical profiles, top and bottom profiles, and mounting accessories.
Workable Area: Height - 55mm, Width - 108mm.
