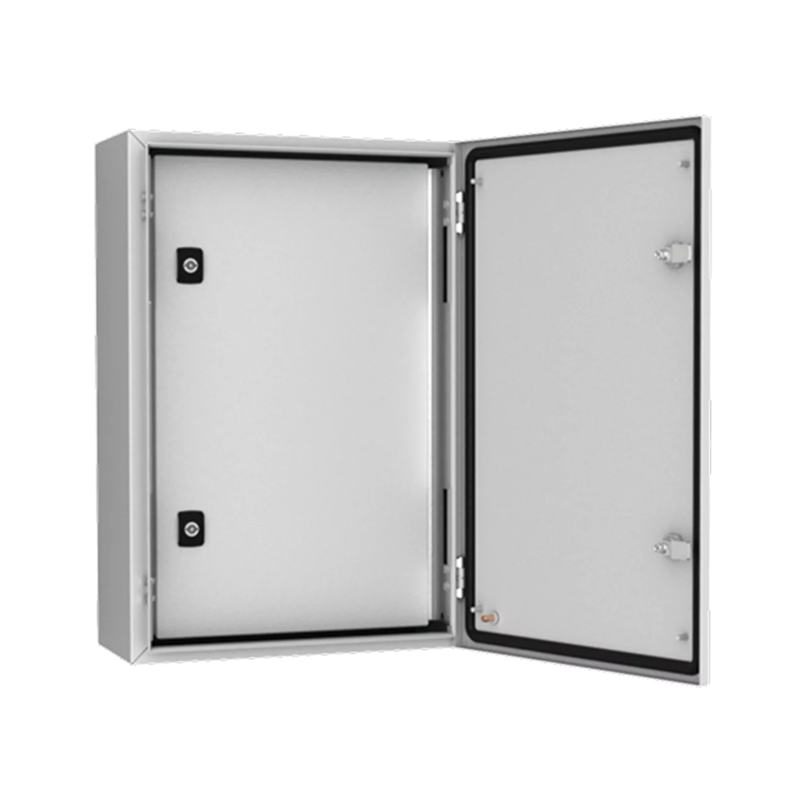

Inner Doors, ADI, 774x761x71mm, Light Gray, Mild Steel
SKU: ADI08080R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Designed to give enclosures an extra mounting surface, the Vent Hoffman Inner Doors, ADI allow for the attachment of controls, meters, and indicators while concealing other components.
These inner doors are perfect for situations where safety and organization are priorities because they improve security by preventing unwanted access to the essential components.
Installation and usage versatility is offered by the doors' ability to be installed to open from the left or the right.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Provides an additional mounting surface, creating two levels of access.
Ensures non-authorized personnel have access only to the controls on the inner door.
Often used in combination with a glazed door (ADT or ADC).
Compatibility: 19-inch version available on request.
Additional Requirements: Machining required for stainless steel enclosures.
These inner doors are a practical solution for enhancing the organization and security of your enclosure setup, ensuring that only authorized personnel can access critical components.
Specifications:
Description: Inner doors for enclosures.
Material: 1.5 mm mild steel for the door, 2 mm mild steel for vertical top and bottom profiles.
Dimensions: 774 mm x 761 mm x 71 mm.
Colour: Light grey.
Lock: Double-bit 3 mm insert; doors 700 mm high and above have 2 locks.
Usable Depth: 35 mm between inner and external door.
Adjustability: Adjustable depth position with AMG accessory.
Workable Area: Height - 55 mm, Width - 108 mm.
Application: Suitable for mounting controls, meters, lamps, etc.
Installation: Hinges can be mounted to allow left or right-hand opening.
