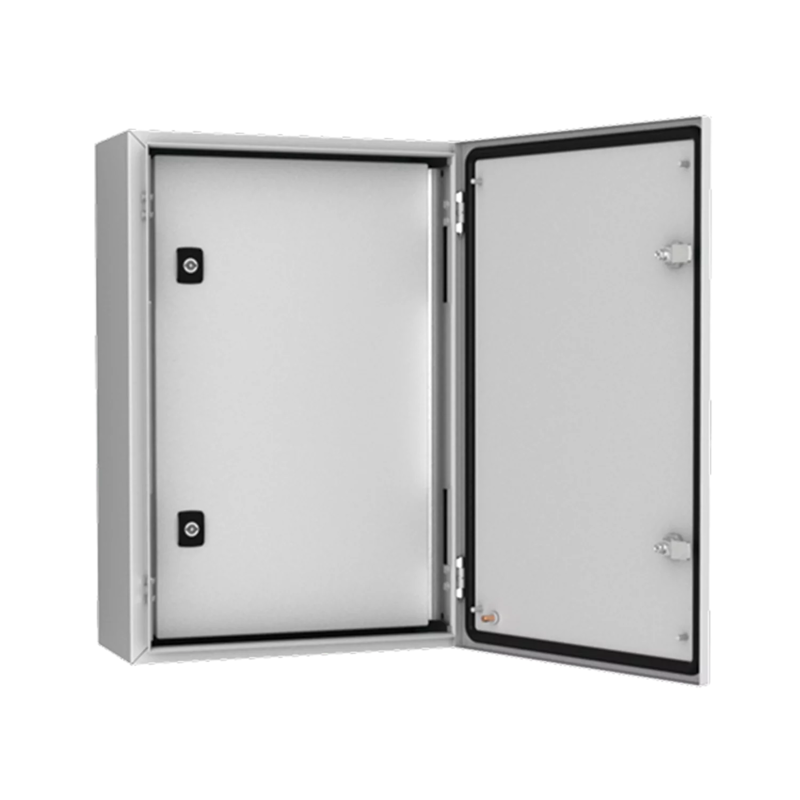

Inner Doors, ADI, 974x761x71mm, Light Gray, Mild Steel
SKU: ADI10080R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For wall-mounted enclosures, the Vent Hoffman Inner Door (model ADI10080R5) is a useful and safe feature.
This inner door, which is 974x761x71 mm in size, is constructed from premium mild steel and has a light grey finish.
It provides an extra mounting surface inside the enclosure, which is perfect for mounting meters, controls, and other parts while shielding them from prying eyes.
There is installation flexibility because the door can be hinged to open from either the left or the right side.
This inner door, which provides two levels of access and guarantees that only authorized workers can interact with the inner components, is particularly helpful in applications when a glass door is also utilized.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model Number: ADI10080R5.
Dimensions: 974x761x71mm.
Material: Mild Steel.
Colour: Light Gray.
Usable Depth Between Inner and External Door: 35mm.
Adjustable Depth Position: Yes, with AMG accessory.
Lock Type: Double-bit 3 mm insert; doors 700 mm high and above have 2 locks.
Mounting: Hinges can be mounted for left or right-hand opening.
Pack Quantity: Includes inner door, two vertical profiles, top and bottom profiles, and mounting accessories.
Workable Area: Height - 55mm, Width - 108mm.
