Double door Stainless steel Enclosure ADR1201240
SKU: ADR1201240
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

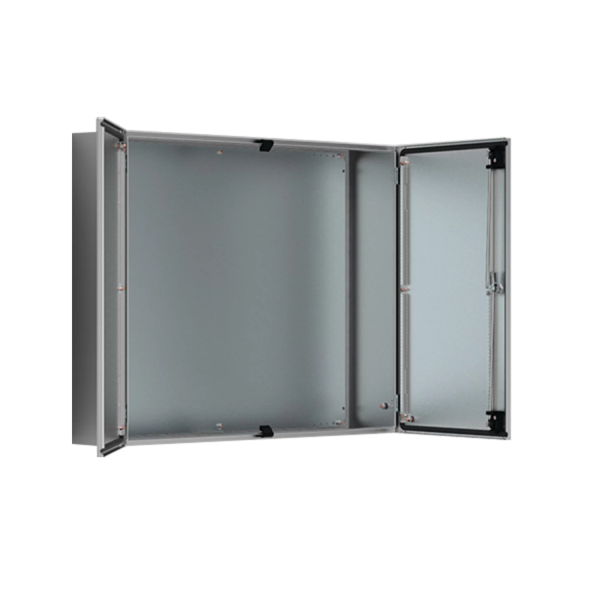

A sturdy wall-mounted enclosure, the Vent Hoffman Double Door Stainless Steel Enclosure ADR1201240 is made to safeguard electrical and electronic components in challenging conditions.
When a single door would take up too much room when opened, this double door design is perfect for cramped areas.
It is ideal for demanding areas, like the food and beverage and pharmaceutical sectors, due to its improved load capacity when divided into two doors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: AISI 304L / AISI 316L pre-grained stainless steel.
Body Thickness: 1.5 mm.
Door Thickness: 2 mm.
Mounting Plate: 2.5 mm galvanized steel.
Dimensions:
Height: 1200 mm.
Width: 1200 mm.
Depth: 400 mm.
Protection Degree: IP 55.
Industry Standards:
UL 508A Listed; Type 12; File No. E92044.
cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 12; File No. E92044.
NEMA/EEMAC Type 12.
CSA, File No. 1442951: Type 12.
IEC 62208.
KEMA, GOST, DNV, CE, Lloyds, Maritime.
Body Construction: Folded and seam welded.
Door: Corner formed in one piece, surface mounted with 130° opening, concealed AISI 304 stainless steel hinges with captive pin.
Sealing:
AISI 304L: Injected polyurethane gasket.
AISI 316L: Injected silicone gasket.
Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock with 90° movement and anti-vibration mechanism, espagnolette three-point locking.
Mounting Plate Features: Marked vertically at 10 mm intervals, holes for cable fixing, fixed onto M8 press welded studs, strengthened by folded edges for enclosures 800 mm and above.
Cable Access: No gland plate openings to maximize sealing and cleanliness.
Protection Ratings: IP 55, TYPE 12, IK 10.
Finish: 400 pre-grained stainless steel.
