Z-Stick Gen5+
SKU: AEO-0001-S04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

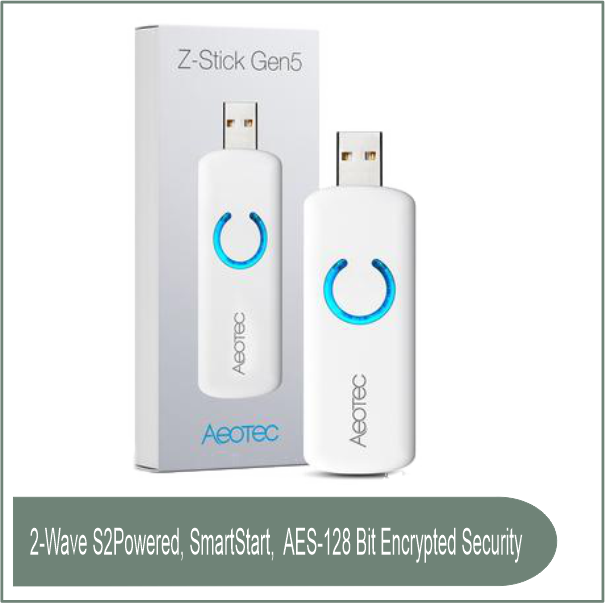

The Aeotec Z-Stick Gen5+ is a USB-based Z-Wave Plus controller that enables computers and single-board computers to function as Z-Wave smart home hubs.
It enables direct communication between a host system and Z-Wave devices such as sensors, switches, locks, lighting controllers, and automation equipment.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Z-Wave Controller: Acts as a Z-Wave controller when connected to a computer or gateway.
Cross-Platform Support: Works with Windows, macOS, Linux, and Raspberry Pi.
Battery Backup: Allows you to unplug and include/exclude devices directly into the network without a computer, using its internal battery.
Z-Wave Plus: Supports the latest Z-Wave Plus standard, providing extended range, faster communication, and better energy efficiency.
OTA (Over-the-Air) Updates: Supports OTA firmware upgrades for itself and connected Z-Wave devices.
Security: Provides AES-128 encryption for secure communication between devices.
Plug-and-Play: Easy to set up via USB with compatible software and hubs.
Wide Compatibility: Works with numerous Z-Wave devices from other manufacturers, allowing integration into larger networks.
Range: Enhanced wireless range of up to 150 meters (open air) for wider coverage.
Specifications:
Chipset: Z-Wave Plus 500 series.
Interface: USB 2.0.
Power Supply: USB-powered (5V), with internal rechargeable battery for portable inclusion/exclusion.
Frequency: Based on region (868.42 MHz for EU, 908.42 MHz for US, 921.42 MHz for AU/NZ).
Range: Up to 150 meters (open air).
Dimensions: 7.5cm x 1.9cm x 1.0cm.
Operating Temperature: 0°C to 40°C.
Storage Temperature: -20°C to 60°C.
Operating System Support: Windows, macOS, Linux, Raspberry Pi.
Z-Wave Standard: Z-Wave Plus.
Backup Battery: Built-in rechargeable battery for device inclusion/exclusion.
Works with:
Compatible with any Z-Wave or Z-Wave Plus devices.
Works with open-source software and home automation hubs such as Home Assistant, OpenHAB, Domoticz, etc.
